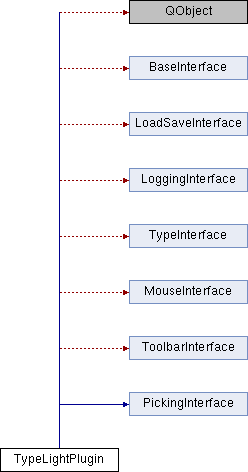

Inheritance diagram for TypeLightPlugin:

Public Slots
QString	version ()

Signals
void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addEmptyObject (DataType _type, int &_id)

void	emptyObjectAdded (int _id)

void	deleteObject (int _id)

void	updatedObject (int _id, const UpdateType &_type)

void	updateView ()

void	getToolBar (QString _name, QToolBar *&_toolbar)

void	addPickMode (const std::string &_mode)

void	addHiddenPickMode (const std::string &_mode)

void	setPickModeMouseTracking (const std::string &_mode, bool _mouseTracking)

void	setPickModeToolbar (const std::string &_mode, QToolBar *_toolbar)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from TypeInterface
virtual void	emptyObjectAdded (int _id)
	Emit this signal if an empty object has been created. More...

Signals inherited from ToolbarInterface
virtual void	addToolbar (QToolBar *_toolbar)
	Adds a Toolbar to the main widget. More...

Signals inherited from PickingInterface
virtual void	addPickMode (const std::string &_mode)
	Add a new picking mode to the examiner. More...

Public Member Functions
QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

bool	registerType ()

int	addEmpty ()
	Create an empty object. More...

DataType	supportedType ()
	Return your supported object type( e.g. DATA_TRIANGLE_MESH ) More...

void	pluginsInitialized ()
	Initialize Plugin step 2. More...

int	addDefaultLight (QString _name)

void	showReducedUi (bool reduced)

Private Slots
void	noguiSupported ()

void	slotLightModeRequest (bool _checked)

void	slotPickModeRequest (QAction *_action)

void	slotSetAllOrTarget (bool _checked)

Private Member Functions
void	slotPickModeChanged (const std::string &_pickMode)
	The pickingMode has changed. More...

void	slotAllCleared ()
	Called if the whole scene is cleared. More...

void	addDefaultLights ()

void	removeDefaultLights ()

void	addedEmptyObject (int _id)
	An empty object has been added. More...

void	objectDeleted (int _id)
	An object was deleted. More...

void	slotMouseEventLight (QMouseEvent *_event)
	Mouse Event from main application ( Light Mode ) More...

void	rotateLights (ACG::Vec3d &_axis, double _angle)
	Rotate light sources.

void	rotateLightDirection (ACG::Vec3d &_axis, double _angle)
	Rotate spot light direction.

void	updateLights ()
	Update light sources' positions.

bool	computeClickOnTrackball (const QPoint &_v2D, ACG::Vec3d &_clickOnSphere, ACG::GLState &_state)
	Compute click on trackball containing the light source. More...

bool	computeClickOnLightTrackball (const QPoint &_v2D, ACG::Vec3d &_clickOnSphere, ACG::GLState &_state)
	Compute click on trackball of light source. More...

float	findDepth ()
	Find depth of nearest light source.

double	getFarthestRadius ()

void	addAssistLines ()
	Get number of non-directional light sources.

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from TypeInterface
virtual	~TypeInterface ()
	Destructor.

Private Member Functions inherited from MouseInterface
virtual	~MouseInterface ()
	Destructor.

Private Member Functions inherited from ToolbarInterface
virtual	~ToolbarInterface ()
	Destructor.

virtual void	removeToolbar (QToolBar *_toolbar)
	Remove a Toolbar from the main widget. More...

virtual void	getToolBar (QString _name, QToolBar *&_toolbar)
	Get a pointer to a Toolbar of the given name or 0 if it does not exist. More...

Private Member Functions inherited from PickingInterface
virtual void	addHiddenPickMode (const std::string &_mode)
	Add a new picking mode to the examiner which will be invisible. More...

virtual void	setPickModeCursor (const std::string &_mode, QCursor _cursor)
	Set the cursor of the given PickMode. More...

virtual void	setPickModeMouseTracking (const std::string &_mode, bool _mouseTracking)
	Set mouse tracking for the given PickMode. More...

virtual void	setPickModeToolbar (const std::string &_mode, QToolBar *_toolbar)
	Set the additional toolbar of the given PickMode. More...

virtual void	removePickModeToolbar (const std::string &_mode)
	Removes the additional toolbar of the given PickMode. More...

virtual	~PickingInterface ()
	Destructor.

Private Attributes
std::vector< int >	lightSources_
	Count light sources in scene.

bool	defaultLights_

ACG::GLMatrixd	light_matrix_

QToolBar *	toolbar_

QToolBar *	lightOptions_

QAction *	lightAction_

QAction *	moveMode_

QAction *	translateMode_

QAction *	rotateMode_

QAction *	allLightsMode_

QAction *	viewerToolbarAction_

bool	onlyTargets_

QPoint	lastPoint2D_

ACG::Vec3d	lastPoint3D_

float	planeDepth_

ACG::Vec3d	transVec_

bool	rotation_

double	radius_

float	depth_

ACG::Vec3d	lightCenter_

double	lightRadius_

int	lightId_

bool	hitLightTrackball_

bool	hitTrackball_

Detailed Description

Definition at line 68 of file TypeLight.hh.

Member Function Documentation

void TypeLightPlugin::addedEmptyObject ( int _id )

privatevirtual

An empty object has been added.

Slot is called if an empty object has been added by the core.
This slot will be executed on the main thread.

Parameters

_id	Id of the new object

Reimplemented from LoadSaveInterface.

Definition at line 398 of file TypeLight.cc.

int TypeLightPlugin::addEmpty ( )

virtual

Create an empty object.

When this slot is called you have to create an object of your supported type.

Returns: Id of the new Object

Implements TypeInterface.

Definition at line 374 of file TypeLight.cc.

bool TypeLightPlugin::computeClickOnLightTrackball	(	const QPoint &	_v2D,
		ACG::Vec3d &	_clickOnSphere,
		ACG::GLState &	_state
	)

private

Compute click on trackball of light source.

Compute click on trackball having the light's center as center point.

Definition at line 704 of file TypeLight.cc.

bool TypeLightPlugin::computeClickOnTrackball	(	const QPoint &	_v2D,
		ACG::Vec3d &	_clickOnSphere,
		ACG::GLState &	_state
	)

private

Compute click on trackball containing the light source.

Compute click on trackball having the trackball center of the scene as center point.

Definition at line 673 of file TypeLight.cc.

QString TypeLightPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 160 of file TypeLight.hh.

QString TypeLightPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 159 of file TypeLight.hh.

void TypeLightPlugin::objectDeleted ( int _id )

privatevirtual

An object was deleted.

This function is called by the core if an object gets deleted. It is called immediately before the object is removed from the scenegraph. So if this function is invoked, the object still exists. All plugins get informed via this slot.\

After this function got called for all plugins, the object is removed from the scene with all nodes attached to it and all PerObjectData attached to it.
This slot will be executed on the main thread.

Parameters

_id	Id of the object that is deleted.

Reimplemented from LoadSaveInterface.

Definition at line 417 of file TypeLight.cc.

void TypeLightPlugin::pluginsInitialized ( )

virtual

Initialize Plugin step 2.

This slot is called if all plugins are loaded and the core is ready. Afterwards you can already send signals to other plugins and the core (e.g. adding global textures).

Note: Do not create objects via addEmpty or load objects in this slot, as the rendering system is not ready yet.

Reimplemented from BaseInterface.

Definition at line 200 of file TypeLight.cc.

void TypeLightPlugin::slotAllCleared ( )

privatevirtual

Called if the whole scene is cleared.

This slot is called if the main application cleared the whole scene. No objects will remain in memory and all destructors of the objects are called before this signal is emitted.

Reimplemented from BaseInterface.

Definition at line 90 of file TypeLight.cc.

void TypeLightPlugin::slotMouseEventLight ( QMouseEvent * _event )

privatevirtual

Mouse Event from main application ( Light Mode )

This slot is called if a mouse event occurred in the Viewer This slot will only get called in LightMode. Right button clicks will not be passed to the plugins as this is reserved for the context Menu.

Parameters

_event Mouse event

Reimplemented from MouseInterface.

Definition at line 488 of file TypeLight.cc.

void TypeLightPlugin::slotPickModeChanged ( const std::string & _mode )

privatevirtual

The pickingMode has changed.

This slot is called if the user changes the current picking mode

Parameters

_mode Identifier of Picking mode

Reimplemented from PickingInterface.

Definition at line 300 of file TypeLight.cc.

DataType TypeLightPlugin::supportedType ( )

inlinevirtual

Return your supported object type( e.g. DATA_TRIANGLE_MESH )

The function is used from addEmpty in the core to check if your plugin can create an object of a given dataType. If so, your addEmpty function will be invoked to create it.

Implements TypeInterface.

Definition at line 171 of file TypeLight.hh.

The documentation for this class was generated from the following files:

PluginCollection-TypePlugins/Plugin-TypeLight/TypeLight.hh
PluginCollection-TypePlugins/Plugin-TypeLight/TypeLight.cc
