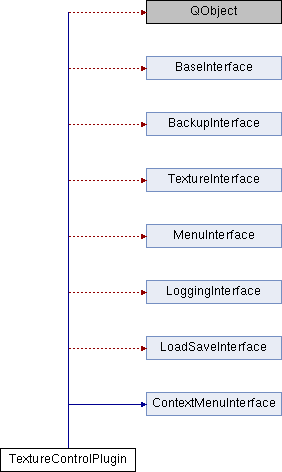

Inheritance diagram for TextureControlPlugin:

Public Slots
QString	version ()

Signals
void	updateView ()

void	updatedObject (int _identifier, const UpdateType &_type)

void	updateTexture (QString, int)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addMenubarAction (QAction *_action, QString _type)

void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup. More...

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen. More...

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup. More...

Signals inherited from TextureInterface
virtual void	addTexture (QString _name, QString _filename, uint _dimension, int _id)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

Signals inherited from MenuInterface
virtual void	getMenubarMenu (QString _name, QMenu *&_menu, bool _create)
	Get a existing top level menu pointer or create a new one. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Signals inherited from ContextMenuInterface
virtual void	addContextMenuItem (QAction *_action, ContextMenuType _type)
	Add an entry for a context Menu. More...

Public Member Functions
	TextureControlPlugin ()
	Constructor.

	~TextureControlPlugin ()
	Destructor.

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

Private Slots
void	pluginsInitialized ()

void	slotObjectUpdated (int _identifier, const UpdateType &_type)

void	slotDrawModeChanged (int _viewerId)

void	slotUpdateAllTextures ()

void	slotTextureAdded (QString _textureName, QString _filename, uint _dimension, int _id)

void	slotTextureAdded (QString _textureName, QString _filename, uint _dimension)

void	slotMultiTextureAdded (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)

void	slotTextureUpdated (QString _textureName, int _identifier)

void	slotSetTextureMode (QString _textureName, QString _mode, int _id)

void	slotSetTextureMode (QString _textureName, QString _mode)

void	slotSwitchTexture (QString _textureName, int _id)

void	slotSwitchTexture (QString _textureName)

void	slotUpdateTexture (QString _textureName, int _identifier)

void	slotTextureChangeImage (QString _textureName, QImage &_image, int _id)

void	slotTextureChangeImage (QString _textureName, QImage &_image)

void	slotTextureGetImage (QString _textureName, QImage &_image, int _id)

void	slotTextureGetImage (QString _textureName, QImage &_image)

void	slotTextureIndex (QString _textureName, int _id, int &_index)

void	slotTextureIndexPropertyName (int _id, QString &_propertyName)

void	slotTextureName (int _id, int _textureIndex, QString &_textureName)

void	slotTextureFilename (int _id, QString _textureName, QString &_textureFilename)

void	slotGetCurrentTexture (int _id, QString &_textureName)

void	slotGetSubTextures (int _id, QString _multiTextureName, QStringList &_subTextures)

void	fileOpened (int _id)

void	addedEmptyObject (int _id)

void	slotAboutToRestore (int _objectid)

void	slotRestored (int _objectid)

void	doSwitchTexture (QString _textureName, int _id)

void	slotTextureMenu (QAction *_action)
	Called when an action in the TextureMenu is triggered.

void	slotSetTextureProperties ()
	Slot for showing the TextureProperties Dialog.

void	applyDialogSettings (TextureData *_texData, QString _textureName, int _id)

void	getCoordinates1D (QString _textureName, int _id, std::vector< double > &_x)

Private Member Functions
bool	StringToBool (QString _value)

void	switchDrawMode (TextureType _type, int _id)
	Checks for a correct drawmode and changes if necessary.

template<typename MeshT >
void	doUpdateTexture (Texture &_texture, MeshT &_mesh)
	Calls the correct copyTexture() function to copy the texture property into the displayed OM property.

template<typename MeshT >
void	getOriginalHistogram (std::vector< double > &_x, std::vector< double > &_y, int _textureid, MeshT &_mesh, OpenMesh::VPropHandleT< double > _texProp)

template<typename MeshT >
void	handleFileOpenTextures (MeshT *&_mesh, int _objectId)
	Handles data stored in new opened files ( e.g. Texture Information )

bool	parseMode (QString _mode, Texture &_texture)
	parse texture mode settings Parses the string _mode and changes the settings in _texture according to the string. If the setting changes, it will return true.

1D Texture copy functions( copy 1D input textures to target texture coordinates and transform values )
template<typename MeshT >
void	copyTexture (Texture &_texture, MeshT &_mesh, OpenMesh::VPropHandleT< double > _texProp)
	Copy the supplied 1D vertex property to both coordinates of the 2D vertex OM texture property.

template<typename MeshT >
void	copyTexture (Texture &_texture, MeshT &_mesh, OpenMesh::HPropHandleT< double > _texProp)
	Copy the supplied 1D halfedge property to both coordinates of the 2D halfedge OM texture property.

2D Texture copy functions( copy 2D input textures to target texture coordinates and transform values )
template<typename MeshT >
void	copyTexture (Texture &_texture, MeshT &_mesh, OpenMesh::VPropHandleT< ACG::Vec2d > _texProp)
	Copy the supplied 2D vertex property to the 2D vertex OM property.

template<typename MeshT >
void	copyTexture (Texture &_texture, MeshT &_mesh, OpenMesh::HPropHandleT< ACG::Vec2d > _texProp)
	Copy the supplied 2D halfedge property to the 2D halfedge OM property.

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup. More...

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object. More...

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object. More...

virtual void	undo ()
	Tell Backup Plugin to undo the last action. More...

virtual void	redo ()
	Tell Backup Plugin to redo the last action. More...

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened. More...

Private Member Functions inherited from TextureInterface
virtual void	addTexture (QString _name, QString _filename, uint _dimension)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

virtual void	addMultiTexture (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)
	Emit this Signal if you want to add a texture for a multitexturing mode. More...

virtual void	updateTexture (QString _textureName, int _identifier)
	Tell Plugins to update the given texture for the given identifier This signal can be called from any thread. .

virtual void	updateAllTextures ()
	Tell Plugins to update all textures.

virtual void	updatedTextures (QString, int)
	emit this signal if you updated a texture More...

virtual void	switchTexture (QString _textureName, int _id)
	emit this signal if you want to switch the texture of a specific object This signal can be called from any thread.

virtual void	switchTexture (QString _textureName)
	emit this signal if you want to switch the global texture This signal can be called from any thread.

virtual void	setTextureMode (QString _textureName, QString _mode)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	setTextureMode (QString _textureName, QString _mode, int _id)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	textureChangeImage (QString _textureName, QImage &_image, int _id)
	Change the texture image of a given texture. More...

virtual void	textureChangeImage (QString _textureName, QImage &_image)
	Change the texture image of a given global texture. More...

virtual void	textureGetImage (QString _textureName, QImage &_image, int _id)
	get the texture image of a given texture More...

virtual void	textureGetImage (QString _textureName, QImage &_image)
	Get the texture image of a given global texture. More...

virtual void	textureIndex (QString _textureName, int _id, int &_index)
	Get the texture index of a given texture. More...

virtual void	textureIndexPropertyName (int _id, QString &_propertyName)
	Get the name of the texture index property. More...

virtual void	textureName (int _id, int _textureIndex, QString &_textureName)
	get the name of the texture with given texture index More...

virtual void	textureFilename (int _id, QString _textureName, QString &_textureFilename)
	get the filename of the texture with given texture index More...

virtual void	getCurrentTexture (int _id, QString &_textureName)
	get the name of the texture which is currently enabled More...

virtual void	getSubTextures (int _id, QString _multiTextureName, QStringList &_subTextures)
	get the names of all sub-textures under the given multiTexture More...

virtual	~TextureInterface ()
	Destructor.

Private Member Functions inherited from MenuInterface
virtual	~MenuInterface ()
	Destructor.

virtual void	addMenubarAction (QAction *_action, QString _name)
	Adds an action to the menubar. More...

virtual void	addMenubarActions (std::vector< QAction * > &_actions, QString _name)
	Add multiple actions to the menu bar. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Member Functions inherited from ContextMenuInterface
virtual	~ContextMenuInterface ()
	Destructor.

virtual void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)
	Add an entry for a context Menu. More...

virtual void	hideContextMenu ()
	hide the main context menu

Private Attributes
TextureData	globalTextures_

texturePropertiesWidget *	settingsDialog_

Global texture menu
QMenu *	textureMenu_

QActionGroup *	actionGroup_

std::vector< QAction * >	textureActions_

Context Menu
QMenu *	contextMenu_
	Stores the per object context menu.

void	slotUpdateContextMenu (int _objectId)
	Slot from the context menu interface. More...

void	slotTextureContextMenu (QAction *_action)
	Called when the context menu has been triggered. More...

Detailed Description

Definition at line 87 of file TextureControl.hh.

Member Function Documentation

QString TextureControlPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 178 of file TextureControl.hh.

QString TextureControlPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 177 of file TextureControl.hh.

void TextureControlPlugin::slotTextureContextMenu ( QAction * _action )

privateslot

Called when the context menu has been triggered.

This slot is called when the per object context menu is triggered. It will switch to the requested texture and mode.

Definition at line 1863 of file TextureControl.cc.

void TextureControlPlugin::slotUpdateContextMenu ( int _objectId )

privateslot

Slot from the context menu interface.

This slot is called, when the core requests a context menu and creates and updates the context menu.

Definition at line 1789 of file TextureControl.cc.

The documentation for this class was generated from the following files:

Plugin-TextureControl/TextureControl.hh
Plugin-TextureControl/TextureControl.cc
Plugin-TextureControl/TextureControl1DTextureHandlingT.cc
Plugin-TextureControl/TextureControl2DTextureHandlingT.cc
Plugin-TextureControl/TextureControlHistogramsT.cc

Public Slots

Signals

Public Member Functions

Private Slots

Private Member Functions

Private Attributes

Context Menu

Detailed Description

Member Function Documentation
