A data structure based on PolyhedralMesh with specializations for tetrahedra. More...

#include <libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshTopologyKernel.hh>

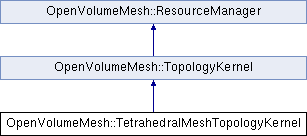

Inheritance diagram for OpenVolumeMesh::TetrahedralMeshTopologyKernel:

Public Types
typedef class TetVertexIter	TetVertexIter

Public Types inherited from OpenVolumeMesh::TopologyKernel
typedef OpenVolumeMeshEdge	Edge

typedef OpenVolumeMeshFace	Face

typedef OpenVolumeMeshCell	Cell

Public Types inherited from OpenVolumeMesh::ResourceManager
typedef std::vector < BaseProperty * >	Properties

Public Member Functions
virtual FaceHandle	add_face (const std::vector< HalfEdgeHandle > &_halfedges, bool _topologyCheck=false)
	Add face via incident edges. More...

virtual FaceHandle	add_face (const std::vector< VertexHandle > &_vertices)
	Add face via incident vertices. More...

virtual CellHandle	add_cell (const std::vector< HalfFaceHandle > &_halffaces, bool _topologyCheck=false)
	Add cell via incident halffaces. More...

CellHandle	add_cell (const std::vector< VertexHandle > &_vertices, bool _topologyCheck=false)

CellHandle	add_cell (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2, VertexHandle _vh3, bool _topologyCheck=false)

HalfFaceHandle	add_halfface (const std::vector< HalfEdgeHandle > &_halfedges, bool _topologyCheck=false)

HalfFaceHandle	add_halfface (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2, bool _topologyCheck=false)

HalfEdgeHandle	add_halfedge (const VertexHandle &_fromVertex, const VertexHandle &_toVertex)

std::vector< VertexHandle >	get_cell_vertices (CellHandle ch) const

std::vector< VertexHandle >	get_cell_vertices (CellHandle ch, VertexHandle vh) const

std::vector< VertexHandle >	get_cell_vertices (HalfFaceHandle hfh) const

std::vector< VertexHandle >	get_cell_vertices (HalfFaceHandle hfh, HalfEdgeHandle heh) const

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh) const

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh, VertexHandle vh) const

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh, HalfEdgeHandle heh) const

VertexHandle	collapse_edge (HalfEdgeHandle _heh)

TetVertexIter	tv_iter (const CellHandle &_ref_h, int _max_laps=1) const

std::pair< TetVertexIter, TetVertexIter >	tet_vertices (const CellHandle &_ref_h, int _max_laps=1) const

Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
VertexOHalfEdgeIter	voh_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexOHalfEdgeIter, VertexOHalfEdgeIter >	outgoing_halfedges (const VertexHandle &_h, int _max_laps=1) const

HalfEdgeHalfFaceIter	hehf_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair < HalfEdgeHalfFaceIter, HalfEdgeHalfFaceIter >	halfedge_halffaces (const HalfEdgeHandle &_h, int _max_laps=1) const

VertexCellIter	vc_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexCellIter, VertexCellIter >	vertex_cells (const VertexHandle &_h, int _max_laps=1)

HalfEdgeCellIter	hec_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair< HalfEdgeCellIter, HalfEdgeCellIter >	halfedge_cells (const HalfEdgeHandle &_h, int _max_laps=1)

CellVertexIter	cv_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellVertexIter, CellVertexIter >	cell_vertices (const CellHandle &_h, int _max_laps=1) const

CellCellIter	cc_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellCellIter, CellCellIter >	cell_cells (const CellHandle &_h, int _max_laps=1) const

HalfFaceVertexIter	hfv_iter (const HalfFaceHandle &_h, int _max_laps=1) const

std::pair< HalfFaceVertexIter, HalfFaceVertexIter >	halfface_vertices (const HalfFaceHandle &_h, int _max_laps=1) const

BoundaryHalfFaceHalfFaceIter	bhfhf_iter (const HalfFaceHandle &_ref_h, int _max_laps=1) const

std::pair < BoundaryHalfFaceHalfFaceIter, BoundaryHalfFaceHalfFaceIter >	boundary_halfface_halffaces (const HalfFaceHandle &_h, int _max_laps=1) const

BoundaryFaceIter	bf_iter () const

VertexIter	v_iter () const

VertexIter	vertices_begin () const

VertexIter	vertices_end () const

std::pair< VertexIter, VertexIter >	vertices () const

EdgeIter	e_iter () const

EdgeIter	edges_begin () const

EdgeIter	edges_end () const

std::pair< EdgeIter, EdgeIter >	edges () const

HalfEdgeIter	he_iter () const

HalfEdgeIter	halfedges_begin () const

HalfEdgeIter	halfedges_end () const

std::pair< HalfEdgeIter, HalfEdgeIter >	halfedges () const

FaceIter	f_iter () const

FaceIter	faces_begin () const

FaceIter	faces_end () const

std::pair< FaceIter, FaceIter >	faces () const

HalfFaceIter	hf_iter () const

HalfFaceIter	halffaces_begin () const

HalfFaceIter	halffaces_end () const

std::pair< HalfFaceIter, HalfFaceIter >	halffaces () const

CellIter	c_iter () const

CellIter	cells_begin () const

CellIter	cells_end () const

std::pair< CellIter, CellIter >	cells () const

virtual size_t	n_vertices () const
	Get number of vertices in mesh.

virtual size_t	n_edges () const
	Get number of edges in mesh.

virtual size_t	n_halfedges () const
	Get number of halfedges in mesh.

virtual size_t	n_faces () const
	Get number of faces in mesh.

virtual size_t	n_halffaces () const
	Get number of halffaces in mesh.

virtual size_t	n_cells () const
	Get number of cells in mesh.

int	genus () const

virtual VertexHandle	add_vertex ()
	Add abstract vertex.

virtual EdgeHandle	add_edge (const VertexHandle &_fromVertex, const VertexHandle &_toHandle, bool _allowDuplicates=false)
	Add edge.

void	set_edge (const EdgeHandle &_eh, const VertexHandle &_fromVertex, const VertexHandle &_toVertex)
	Set the vertices of an edge.

void	set_face (const FaceHandle &_fh, const std::vector< HalfEdgeHandle > &_hes)
	Set the half-edges of a face.

void	set_cell (const CellHandle &_ch, const std::vector< HalfFaceHandle > &_hfs)
	Set the half-faces of a cell.

const Edge &	edge (const EdgeHandle &_edgeHandle) const
	Get edge with handle _edgeHandle.

const Face &	face (const FaceHandle &_faceHandle) const
	Get face with handle _faceHandle.

const Cell &	cell (const CellHandle &_cellHandle) const
	Get cell with handle _cellHandle.

Edge &	edge (const EdgeHandle &_edgeHandle)
	Get edge with handle _edgeHandle.

Face &	face (const FaceHandle &_faceHandle)
	Get face with handle _faceHandle.

Cell &	cell (const CellHandle &_cellHandle)
	Get cell with handle _cellHandle.

Edge	halfedge (const HalfEdgeHandle &_halfEdgeHandle) const
	Get edge that corresponds to halfedge with handle _halfEdgeHandle. More...

Face	halfface (const HalfFaceHandle &_halfFaceHandle) const
	Get face that corresponds to halfface with handle _halfFaceHandle.

Edge	opposite_halfedge (const HalfEdgeHandle &_halfEdgeHandle) const
	Get opposite halfedge that corresponds to halfedge with handle _halfEdgeHandle.

Face	opposite_halfface (const HalfFaceHandle &_halfFaceHandle) const
	Get opposite halfface that corresponds to halfface with handle _halfFaceHandle.

HalfEdgeHandle	halfedge (const VertexHandle &_vh1, const VertexHandle &_vh2) const
	Get halfedge from vertex _vh1 to _vh2.

HalfFaceHandle	halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfEdgeHandle	next_halfedge_in_halfface (const HalfEdgeHandle &_heh, const HalfFaceHandle &_hfh) const
	Get next halfedge within a halfface.

HalfEdgeHandle	prev_halfedge_in_halfface (const HalfEdgeHandle &_heh, const HalfFaceHandle &_hfh) const
	Get previous halfedge within a halfface.

size_t	valence (const VertexHandle &_vh) const
	Get valence of vertex (number of incident edges)

size_t	valence (const EdgeHandle &_eh) const
	Get valence of edge (number of incident faces)

size_t	valence (const FaceHandle &_fh) const
	Get valence of face (number of incident edges)

size_t	valence (const CellHandle &_ch) const
	Get valence of cell (number of incident faces)

virtual VertexIter	delete_vertex (const VertexHandle &_h)
	Delete vertex from mesh. More...

virtual EdgeIter	delete_edge (const EdgeHandle &_h)
	Delete edge from mesh. More...

virtual FaceIter	delete_face (const FaceHandle &_h)
	Delete face from mesh. More...

virtual CellIter	delete_cell (const CellHandle &_h)
	Delete cell from mesh. More...

virtual void	collect_garbage ()
	Delete all entities that are marked as deleted.

virtual bool	is_deleted (const VertexHandle &_h) const

virtual bool	is_deleted (const EdgeHandle &_h) const

virtual bool	is_deleted (const HalfEdgeHandle &_h) const

virtual bool	is_deleted (const FaceHandle &_h) const

virtual bool	is_deleted (const HalfFaceHandle &_h) const

virtual bool	is_deleted (const CellHandle &_h) const

CellIter	delete_cell_range (const CellIter &_first, const CellIter &_last)
	Delete range of cells. More...

virtual void	clear (bool _clearProps=true)
	Clear whole mesh.

void	enable_bottom_up_incidences (bool _enable=true)

void	enable_vertex_bottom_up_incidences (bool _enable=true)

void	enable_edge_bottom_up_incidences (bool _enable=true)

void	enable_face_bottom_up_incidences (bool _enable=true)

bool	has_full_bottom_up_incidences () const

bool	has_vertex_bottom_up_incidences () const

bool	has_edge_bottom_up_incidences () const

bool	has_face_bottom_up_incidences () const

void	enable_deferred_deletion (bool _enable=true)

bool	deferred_deletion_enabled () const

void	enable_fast_deletion (bool _enable=true)

bool	fast_deletion_enabled () const

HalfFaceHandle	adjacent_halfface_in_cell (const HalfFaceHandle &_halfFaceHandle, const HalfEdgeHandle &_halfEdgeHandle) const
	Get halfface that is adjacent (w.r.t. a common halfedge) within the same cell. More...

CellHandle	incident_cell (const HalfFaceHandle &_halfFaceHandle) const
	Get cell that is incident to the given halfface.

bool	is_boundary (const HalfFaceHandle &_halfFaceHandle) const

bool	is_boundary (const FaceHandle &_faceHandle) const

bool	is_boundary (const EdgeHandle &_edgeHandle) const

bool	is_boundary (const HalfEdgeHandle &_halfedgeHandle) const

bool	is_boundary (const VertexHandle &_vertexHandle) const

size_t	n_vertices_in_cell (const CellHandle &_ch) const

Edge	opposite_halfedge (const Edge &_edge) const

Face	opposite_halfface (const Face &_face) const

Public Member Functions inherited from OpenVolumeMesh::ResourceManager
void	resize_vprops (size_t _nv)
	Change size of stored vertex properties.

void	resize_eprops (size_t _ne)
	Change size of stored edge properties.

void	resize_fprops (size_t _nf)
	Change size of stored face properties.

void	resize_cprops (size_t _nc)
	Change size of stored cell properties.

void	clear_vertex_props ()

void	clear_edge_props ()

void	clear_halfedge_props ()

void	clear_face_props ()

void	clear_halfface_props ()

void	clear_cell_props ()

void	clear_mesh_props ()

template<class T >
VertexPropertyT< T >	request_vertex_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
EdgePropertyT< T >	request_edge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfEdgePropertyT< T >	request_halfedge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
FacePropertyT< T >	request_face_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfFacePropertyT< T >	request_halfface_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
CellPropertyT< T >	request_cell_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
MeshPropertyT< T >	request_mesh_property (const std::string &_name=std::string(), const T _def=T())

size_t	n_vertex_props () const

size_t	n_edge_props () const

size_t	n_halfedge_props () const

size_t	n_face_props () const

size_t	n_halfface_props () const

size_t	n_cell_props () const

size_t	n_mesh_props () const

template<class T >
void	set_persistent (VertexPropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (EdgePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (HalfEdgePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (FacePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (HalfFacePropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (CellPropertyT< T > &_prop, bool _flag=true)

template<class T >
void	set_persistent (MeshPropertyT< T > &_prop, bool _flag=true)

Properties::const_iterator	vertex_props_begin () const

Properties::const_iterator	vertex_props_end () const

Properties::const_iterator	edge_props_begin () const

Properties::const_iterator	edge_props_end () const

Properties::const_iterator	halfedge_props_begin () const

Properties::const_iterator	halfedge_props_end () const

Properties::const_iterator	face_props_begin () const

Properties::const_iterator	face_props_end () const

Properties::const_iterator	halfface_props_begin () const

Properties::const_iterator	halfface_props_end () const

Properties::const_iterator	cell_props_begin () const

Properties::const_iterator	cell_props_end () const

Properties::const_iterator	mesh_props_begin () const

Properties::const_iterator	mesh_props_end () const

template<class PropT >
bool	vertex_property_exists (const std::string &_name) const

template<class PropT >
bool	edge_property_exists (const std::string &_name) const

template<class PropT >
bool	halfedge_property_exists (const std::string &_name) const

template<class PropT >
bool	face_property_exists (const std::string &_name) const

template<class PropT >
bool	halfface_property_exists (const std::string &_name) const

template<class PropT >
bool	cell_property_exists (const std::string &_name) const

template<class PropT >
bool	mesh_property_exists (const std::string &_name) const

Protected Member Functions
void	split_edge (HalfEdgeHandle _heh, VertexHandle _vh)

void	split_face (FaceHandle _fh, VertexHandle _vh)

Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
virtual void	swap_cells (CellHandle _h1, CellHandle _h2)

virtual void	swap_faces (FaceHandle _h1, FaceHandle _h2)

virtual void	swap_edges (EdgeHandle _h1, EdgeHandle _h2)

virtual void	swap_vertices (VertexHandle _h1, VertexHandle _h2)

virtual void	delete_multiple_vertices (const std::vector< bool > &_tag)

virtual void	delete_multiple_edges (const std::vector< bool > &_tag)

virtual void	delete_multiple_faces (const std::vector< bool > &_tag)

virtual void	delete_multiple_cells (const std::vector< bool > &_tag)

void	compute_vertex_bottom_up_incidences ()

void	compute_edge_bottom_up_incidences ()

void	compute_face_bottom_up_incidences ()

void	reorder_incident_halffaces (const EdgeHandle &_eh)

Protected Member Functions inherited from OpenVolumeMesh::ResourceManager
void	vertex_deleted (const VertexHandle &_h)

void	edge_deleted (const EdgeHandle &_h)

void	face_deleted (const FaceHandle &_h)

void	cell_deleted (const CellHandle &_h)

void	swap_cell_properties (CellHandle _h1, CellHandle _h2)

void	swap_face_properties (FaceHandle _h1, FaceHandle _h2)

void	swap_halfface_properties (HalfFaceHandle _h1, HalfFaceHandle _h2)

void	swap_edge_properties (EdgeHandle _h1, EdgeHandle _h2)

void	swap_halfedge_properties (HalfEdgeHandle _h1, HalfEdgeHandle _h2)

void	swap_vertex_properties (VertexHandle _h1, VertexHandle _h2)

template<typename PropIterator , typename Handle >
void	swap_property_elements (PropIterator _begin, PropIterator _end, Handle _h1, Handle _h2)

void	delete_multiple_vertex_props (const std::vector< bool > &_tags)

void	delete_multiple_edge_props (const std::vector< bool > &_tags)

void	delete_multiple_face_props (const std::vector< bool > &_tags)

void	delete_multiple_cell_props (const std::vector< bool > &_tags)

Private Member Functions
template<typename PropIterator , typename Handle >
void	swapPropertyElements (PropIterator begin, PropIterator end, Handle source, Handle destination)

Friends
class	TetVertexIter

Additional Inherited Members
Static Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
static HalfEdgeHandle	halfedge_handle (const EdgeHandle &_h, const unsigned char _subIdx)
	Conversion function.

static HalfFaceHandle	halfface_handle (const FaceHandle &_h, const unsigned char _subIdx)
	Conversion function.

static EdgeHandle	edge_handle (const HalfEdgeHandle &_h)
	Handle conversion.

static FaceHandle	face_handle (const HalfFaceHandle &_h)

static HalfEdgeHandle	opposite_halfedge_handle (const HalfEdgeHandle &_h)

static HalfFaceHandle	opposite_halfface_handle (const HalfFaceHandle &_h)

Static Public Attributes inherited from OpenVolumeMesh::TopologyKernel
static const VertexHandle	InvalidVertexHandle = VertexHandle(-1)

static const EdgeHandle	InvalidEdgeHandle = EdgeHandle(-1)

static const FaceHandle	InvalidFaceHandle = FaceHandle(-1)

static const CellHandle	InvalidCellHandle = CellHandle(-1)

static const HalfEdgeHandle	InvalidHalfEdgeHandle = HalfEdgeHandle(-1)

static const HalfFaceHandle	InvalidHalfFaceHandle = HalfFaceHandle(-1)

Static Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
template<class Circulator >
static Circulator	make_end_circulator (const Circulator &_circ)

Protected Attributes inherited from OpenVolumeMesh::TopologyKernel
std::vector< std::vector < HalfEdgeHandle > >	outgoing_hes_per_vertex_

std::vector< std::vector < HalfFaceHandle > >	incident_hfs_per_he_

std::vector< CellHandle >	incident_cell_per_hf_

std::vector< Edge >	edges_

std::vector< Face >	faces_

std::vector< Cell >	cells_

std::vector< bool >	vertex_deleted_

std::vector< bool >	edge_deleted_

std::vector< bool >	face_deleted_

std::vector< bool >	cell_deleted_

Detailed Description

A data structure based on PolyhedralMesh with specializations for tetrahedra.

Definition at line 63 of file TetrahedralMeshTopologyKernel.hh.

Member Function Documentation

CellHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_cell	(	const std::vector< HalfFaceHandle > &	_halffaces,
		bool	_topologyCheck = `false`
	)

virtual

Add cell via incident halffaces.

Add cell via incident halffaces

Returns: Handle of the new cell, InvalidCellHandle if _topologyCheck is true and _halffaces are not connected.

Warning: If _halffaces are not connected and _topologyCheck is false, the behavior is undefined.

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 98 of file TetrahedralMeshTopologyKernel.cc.

FaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_face	(	const std::vector< HalfEdgeHandle > &	_halfedges,
		bool	_topologyCheck = `false`
	)

virtual

Add face via incident edges.

Add face via incident edges

Returns: Handle of the new face, InvalidFaceHandle if _halfedges are not connected and _topologyCheck is true.

Warning: If _halfedges are not connected and _topologyCheck is false, the behavior is undefined.

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 64 of file TetrahedralMeshTopologyKernel.cc.

FaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_face ( const std::vector< VertexHandle > & _vertices )

virtual

Add face via incident vertices.

Add face via incident vertices Define the _vertices in counter-clockwise order (from the "outside")

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 81 of file TetrahedralMeshTopologyKernel.cc.

The documentation for this class was generated from the following files:

libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshTopologyKernel.hh
libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshTopologyKernel.cc

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation
