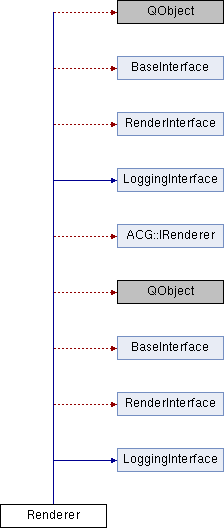

Inheritance diagram for Renderer:

Public Slots
QString	version ()

QString	version ()

Signals
void	log (Logtype _type, QString _message)

void	log (QString _message)

void	log (Logtype _type, QString _message)

void	log (QString _message)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Public Member Functions
QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

QString	renderObjectsInfo (bool _outputShaderInfo)
	Return a qstring of the current render objects. More...

Private Slots
void	initializePlugin ()

void	render (ACG::GLState *_glState, Viewer::ViewerProperties &_properties)

QString	rendererName ()

void	supportedDrawModes (ACG::SceneGraph::DrawModes::DrawMode &_mode)

QString	checkOpenGL ()

void	initializePlugin ()

void	exit ()

void	render (ACG::GLState *_glState, Viewer::ViewerProperties &_properties)

QString	rendererName ()

void	supportedDrawModes (ACG::SceneGraph::DrawModes::DrawMode &_mode)

QString	checkOpenGL ()

Additional Inherited Members
Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from RenderInterface
virtual	~RenderInterface ()
	Destructor.

virtual QAction *	optionsAction ()
	Return options menu. More...

virtual void	reloadShaders ()
	Reload any renderer specific shaders. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ACG::IRenderer
virtual void	addRenderObject (RenderObject *_renderObject)
	Callback for the scenegraph nodes, which send new render objects via this function. More...

virtual void	addLight (const LightData &_light)
	Callback for the scenegraph nodes, which send new lights to the renderer via this function. More...

void	dumpRenderObjectsToFile (const char _fileName, ACG::RenderObject *_sortedList=0) const
	Debugging function to dump list of render objects into a file. More...

virtual QString	dumpCurrentRenderObjectsToString (ACG::RenderObject *_list=0, bool _outputShaders=false, std::vector< ACG::ShaderModifier > *_modifiers=0)
	Outputs the current render objects to the string. More...

void	setErrorDetectionLevel (int _level)
	Control error detection for checking render objects. More...

int	getErrorDetectionLevel () const
	Get error detection level.

void	setViewerID (int _viewerID)
	Set currently active viewer id. More...

virtual void	prepareRenderingPipeline (ACG::GLState _glState, ACG::SceneGraph::DrawModes::DrawMode _drawMode, ACG::SceneGraph::BaseNode _scenegraphRoot)
	Prepares renderer and OpenGL for any draw-related calls including. More...

virtual void	collectRenderObjects (ACG::GLState _glState, ACG::SceneGraph::DrawModes::DrawMode _drawMode, ACG::SceneGraph::BaseNode _sceneGraphRoot)
	Traverse the scenegraph to collect render information. More...

void	traverseRenderableNodes (ACG::GLState _glState, ACG::SceneGraph::DrawModes::DrawMode _drawMode, ACG::SceneGraph::BaseNode _node, const ACG::SceneGraph::Material *_mat)
	Scene graph traversal for render object collection. More...

virtual void	sortRenderObjects ()
	Sort the renderobjects by priority. More...

virtual void	renderObject (ACG::RenderObject _obj, GLSL::Program _prog=0, bool _constRenderStates=false, const std::vector< unsigned int > *_shaderModifiers=0)
	Render one renderobject. More...

virtual void	bindObjectVBO (ACG::RenderObject _obj, GLSL::Program _prog)
	Binding VBOs (First state function) More...

virtual void	bindObjectUniforms (ACG::RenderObject _obj, GLSL::Program _prog)
	Binding Uniforms (Second state function) More...

virtual void	bindObjectRenderStates (ACG::RenderObject *_obj)
	Binding Render state (Third state function) More...

virtual void	drawObject (ACG::RenderObject *_obj)
	Executes the opengl draw call for one object (Fourth function) More...

virtual void	finishRenderingPipeline (bool _drawOverlay=true)
	Draw overlay objects and reset OpenGL state. More...

virtual void	saveInputFbo ()
	Save input Fbo configuration (fbo id + viewport)

virtual void	restoreInputFbo ()
	Restore the previously saved input Fbo configuration (fbo id + viewport)

virtual void	saveActiveFbo (GLint _outFboId, GLint _outViewport, GLint *_outDrawBuffer) const
	Save active Fbo configuration (fbo id + viewport) More...

virtual void	restoreFbo (GLint _fboId, const GLint *_outViewport, GLint _drawBuffer) const
	Restore a previously saved input Fbo configuration (fbo id + viewport) More...

virtual void	clearInputFbo (const ACG::Vec4f &_clearColor)
	Clear input Fbo. More...

virtual void	copyDepthToBackBuffer (GLuint _depthTex, float _scale=1.0f)
	Copy texture to depth buffer. More...

virtual void	renderDepthMap (int _viewerID, int _width, int _height)
	Render the depth map of the scene. More...

int	getNumRenderObjects () const
	Get the number of collected render objects (not including overlay objects or gl4.2 line objects)

int	getNumOverlayObjects () const
	Get the number of render objects in the overlay (for instance objects from coordsys are overlayed)

int	getNumLineGL42Objects () const
	Get the number of default line objects rendered with opengl 4.2.

int	getNumLights () const
	Get the number of current light sources.

ACG::RenderObject *	getRenderObject (int i)
	Get render objects in the sorted list by index (not including overlay objects)

ACG::RenderObject *	getOverlayRenderObject (int i)
	Get render objects in the sorted list by index (only overlay objects)

ACG::RenderObject *	getLineGL42RenderObject (int i)
	Get render objects in the sorted list by index (only line objects rendered with gl4.2)

LightData *	getLight (int i)
	Get light by index.

const ACG::Vec3f &	getGlobalAmbientScale () const
	Get global ambient light contribution from GL_LIGHT_MODEL_AMBIENT.

void	setLineThicknessRenderingGL42 (bool _enable)

Static Private Member Functions inherited from ACG::IRenderer
static int	cmpPriority (const void , const void )
	Compare priority of render objects. More...

Private Attributes inherited from ACG::IRenderer
int	numLights_
	Number of Lights.

LightData	lights_ [SG_MAX_SHADER_LIGHTS]
	Light sources ( Filled by addLight() )

ACG::Vec3f	globalLightModelAmbient_

std::vector< ACG::RenderObject >	renderObjects_
	array of renderobjects, filled by addRenderObject()

std::vector< ACG::RenderObject * >	sortedObjects_
	sorted list of renderobjects without overlay objects (sorted in rendering order)

std::vector< ACG::RenderObject * >	overlayObjects_
	sorted list of overlay-only renderobjects (sorted in rendering order)

std::map< int, ACG::FBO * >	depthMaps_

bool	depthMapUsed_
	true if at least one renderobject requires a scene depthmap, false otherwise

int	curViewerID_
	currently active viewer ID as specified in prepareRenderObjects()

GLMatrixf	viewMatrix_
	view transform

Vec3f	camPosWS_
	cam position in world-space

Vec3f	camDirWS_
	direction the camera is looking to in world-space

GLint	prevFbo_
	previous fbo

GLint	prevDrawBuffer_
	previous drawbuffer target (ie GL_BACK, GL_COLOR_ATTACHMENTi...)

GLint	prevViewport_ [4]
	previous viewport

bool	prevFboSaved_
	flag indicating a that saveCurrentFbo() has been called prior restoreFbo()

GLSL::Program *	depthCopyShader_
	shader copies depth of the first front layer to the back buffer

int	errorDetectionLevel_
	error-detection level for checking render objects

Detailed Description

Definition at line 70 of file Renderer.hh.

Member Function Documentation

QString Renderer::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 84 of file Renderer.hh.

QString Renderer::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 92 of file Renderer.hh.

QString Renderer::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 83 of file Renderer.hh.

QString Renderer::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 91 of file Renderer.hh.

QString Renderer::renderObjectsInfo ( bool _outputShaderInfo )

inlinevirtual

Return a qstring of the current render objects.

In this function your plugin should return a list of the render objects (possibly with additional information). It can be used for debugging purposes.

The IRenderer class already has a function called dumpCurrentRenderObjectsToString() which can be used to implement this function.

Parameters

_outputShaderInfo Output shader code along with the render objects

Returns: string of render objects

Reimplemented from RenderInterface.

Definition at line 89 of file Renderer.hh.

The documentation for this class was generated from the following files:

PluginCollection-Renderers/Plugin-Render-Classic/Renderer.hh
PluginCollection-Renderers/Plugin-Render-Classic/Renderer.cc
