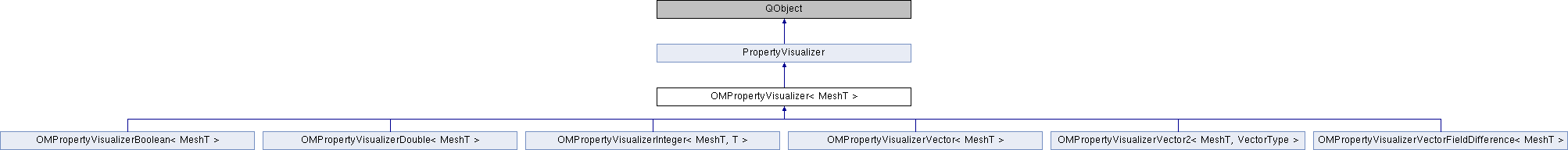

Inheritance diagram for OMPropertyVisualizer< MeshT >:

Classes
class	CopyProperty

Public Member Functions
	OMPropertyVisualizer (MeshT *_mesh, PropertyInfo _propertyInfo)

virtual void	visualize (bool _setDrawMode, QWidget *_widget)
	Visualizes the property. More...

virtual void	removeProperty ()
	Removes the property. More...

virtual void	duplicateProperty ()
	Duplicates the property. More...

virtual void	clear ()
	Clears the property. More...

unsigned int	getClosestPrimitiveId (unsigned int _face, ACG::Vec3d &_hitPoint)
	Returns the ID of the closest primitive. More...

virtual QString	getPropertyText (unsigned int index)
	Returns the value of a property in text form. More...

Public Member Functions inherited from PropertyVisualizer
	PropertyVisualizer (PropertyInfo _propertyInfo)
	Constructor. More...

virtual	~PropertyVisualizer ()
	Destructor.

virtual QString	getName ()
	Returns a beautiful name. More...

virtual QWidget *	getWidget ()
	Returns the visualizer's widget. More...

const PropertyInfo &	getPropertyInfo () const
	Returns the PropertyInfo.

Protected Member Functions
virtual void	visualizeFaceProp (bool _setDrawMode=true)

virtual void	visualizeEdgeProp (bool _setDrawMode=true)

virtual void	visualizeHalfedgeProp (bool _setDrawMode=true)

virtual void	visualizeVertexProp (bool _setDrawMode=true)

template<typename PropType >
void	removeProperty_stage1 ()

template<typename PropType >
void	removeProperty_stage2 ()

template<typename PropType >
void	duplicateProperty_stage1 ()

template<typename PropHandle , typename Iterator >
void	duplicateProperty_stage2 (Iterator first, Iterator last)

virtual void	clearFaceProp ()

virtual void	clearEdgeProp ()

virtual void	clearHalfedgeProp ()

virtual void	clearVertexProp ()

virtual void	setFacePropertyFromText (unsigned int index, QString text)

virtual void	setEdgePropertyFromText (unsigned int index, QString text)

virtual void	setHalfedgePropertyFromText (unsigned int index, QString text)

virtual void	setVertexPropertyFromText (unsigned int index, QString text)

OpenMesh::Vec4f	convertColor (QColor color)

virtual void	setPropertyFromText (unsigned int index, QString text)
	Returns the value of a property in text form. More...

virtual int	getEntityCount ()
	Returns the number of entities.

virtual QString	getHeader ()
	Returns the header for saving.

unsigned int	getClosestFaceId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int	getClosestEdgeId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int	getClosestHalfedgeId (unsigned int _face, ACG::Vec3d &_hitPoint)

unsigned int	getClosestVertexId (unsigned int _face, ACG::Vec3d &_hitPoint)

template<typename InnerType >
QString	getPropertyText_ (unsigned int index)

Protected Attributes
MeshT *	mesh

Protected Attributes inherited from PropertyVisualizer
PropertyInfo	propertyInfo

Additional Inherited Members
Signals inherited from PropertyVisualizer
void	log (Logtype _type, QString _message)

void	log (QString _message)

Static Public Member Functions inherited from PropertyVisualizer
static QString	toStr (bool b)

static QString	toStr (double d)

static QString	toStr (int i)

static QString	toStr (uint8_t i)

static QString	toStr (unsigned int i)

static QString	toStr (OpenMesh::Vec3d v)

static QString	toStr (OpenMesh::Vec2d v)

static QString	toStr (OpenMesh::Vec2f v)

static bool	strToBool (QString str)

static double	strToDouble (QString str)

static int	strToInt (QString str)

static unsigned int	strToUInt (QString str)

static OpenMesh::Vec3d	strToVec3d (QString str)

static OpenMesh::Vec2d	strToVec2d (QString str)

static OpenMesh::Vec2f	strToVec2f (QString str)

Public Attributes inherited from PropertyVisualizer
QWidget *	widget

Detailed Description

template<typename MeshT>
class OMPropertyVisualizer< MeshT >

Definition at line 61 of file OMPropertyVisualizer.hh.

Member Function Documentation

template<typename MeshT >

void OMPropertyVisualizer< MeshT >::clear ( void )

virtual

Clears the property.

This method clears the property by releasing the colors of the mesh.

Reimplemented from PropertyVisualizer.

Reimplemented in OMPropertyVisualizerVector2< MeshT, VectorType >, and OMPropertyVisualizerVector< MeshT >.

Definition at line 339 of file OMPropertyVisualizerT.cc.

template<typename MeshT>

virtual void OMPropertyVisualizer< MeshT >::duplicateProperty ( )

inlinevirtual

Duplicates the property.

This will duplicate the property.

Reimplemented from PropertyVisualizer.

Reimplemented in OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, and OMPropertyVisualizerBoolean< MeshT >.

Definition at line 88 of file OMPropertyVisualizer.hh.

template<typename MeshT >

unsigned int OMPropertyVisualizer< MeshT >::getClosestPrimitiveId	(	unsigned int	_face,
		ACG::Vec3d &	_hitPoint
	)

Returns the ID of the closest primitive.

Parameters

_face	The face that was hit.
_hitPoint	The position where the face was hit.

Returns: The ID of the primitive that is closest to the hitpoint.

This method is used for picking. For some entities it might be convenient to not pick them directly but pick faces instead. Then, this method iterates over the entities adjacent to the face and return the one that is closest to the actual hit point.

Definition at line 206 of file OMPropertyVisualizerT.cc.

template<typename MeshT >

QString OMPropertyVisualizer< MeshT >::getPropertyText ( unsigned int i )

virtual

Returns the value of a property in text form.

Parameters

i	The id of the entity whose property we want to know.

Returns: The property value in text form.

Implements PropertyVisualizer.

Reimplemented in OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVectorFieldDifference< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, OMPropertyVisualizerDouble< MeshT >, and OMPropertyVisualizerBoolean< MeshT >.

Definition at line 148 of file OMPropertyVisualizerT.cc.

template<typename MeshT>

virtual void OMPropertyVisualizer< MeshT >::removeProperty ( )

inlinevirtual

Removes the property.

This will remove the property from the mesh. After this method the PropertyVisualizer should be deleted.

Reimplemented from PropertyVisualizer.

Reimplemented in OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVectorFieldDifference< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, and OMPropertyVisualizerBoolean< MeshT >.

Definition at line 81 of file OMPropertyVisualizer.hh.

template<typename MeshT >

void OMPropertyVisualizer< MeshT >::setPropertyFromText	(	unsigned int	index,
		QString	text
	)

protectedvirtual

Returns the value of a property in text form.

Parameters

index	The id of the entity whose property should be set.
text	The value in text form.

This method sets the porperty of a given entity by transforming the text into the correct type. This is used when a property is loaded from a file.

Implements PropertyVisualizer.

Definition at line 155 of file OMPropertyVisualizerT.cc.

template<typename MeshT >

void OMPropertyVisualizer< MeshT >::visualize	(	bool	_setDrawMode,
		QWidget *	_widget
	)

virtual

Visualizes the property.

To visualize the property this method calls the corresponding visualization method visualizeFaceProp, -EdgeProp, -HalfedgeProp or -VertexProp depending on the entity type of the property.

Reimplemented from PropertyVisualizer.

Definition at line 309 of file OMPropertyVisualizerT.cc.

The documentation for this class was generated from the following files:

Plugin-PropertyVis/OpenMesh/OMPropertyVisualizer.hh
Plugin-PropertyVis/OpenMesh/OMPropertyVisualizerT.cc
