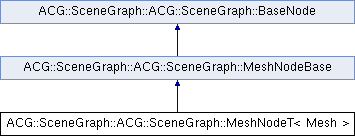

Inheritance diagram for ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >:

Public Member Functions
	ACG_CLASSNAME (MeshNode)

	MeshNodeT (Mesh &_mesh, BaseNode *_parent=0, std::string _name="<MeshNode>")
	Default constructor. More...

virtual	~MeshNodeT ()
	Destructor.

void	update_geometry ()
	the geometry of the mesh has changed More...

void	update_topology ()
	the topology of the mesh has changed More...

void	update_color ()
	the colors of the mesh have changed More...

void	update_textures ()
	force an texture update More...

void	set_property_map (std::map< int, std::string > *_map)

unsigned int	getMemoryUsage ()
	measures the size in bytes of allocated memory

void	set_offset (bool enable)

general picking functions
void	pick (GLState &_state, PickTarget _target)
	Draws the object in picking mode. More...

Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::MeshNodeBase
void	updatePolyEdgeBuf ()

Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
	BaseNode (BaseNode *_parent=0, std::string _name="<unknown>")
	Default constructor.

	BaseNode (BaseNode _parent, BaseNode _child, std::string _name="<unknown>")
	Put this node between _parent and _child.

virtual	~BaseNode ()
	Destructor.

void	delete_subtree ()
	Delete the whole subtree of this node. More...

virtual const std::string &	className () const =0
	Return class name (implemented by the ACG_CLASSNAME macro)

virtual void	enter (GLState &, const DrawModes::DrawMode &)

virtual void	leave (GLState &, const DrawModes::DrawMode &)

virtual void	enterPick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)

virtual void	leavePick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)

void	enablePicking (bool _enable)

bool	pickingEnabled ()

virtual void	mouseEvent (GLState &, QMouseEvent *)
	Handle mouse event (some interaction, e.g. modeling)

void	setDirty (bool _dirty=true)
	mark node for redrawn

bool	isDirty () const
	Check if node should be redrawn.

ChildIter	childrenBegin ()
	Returns: begin-iterator of children.

ConstChildIter	childrenBegin () const
	Same but `cont`.

ChildIter	childrenEnd ()
	Returns: end-iterator of children.

ConstChildIter	childrenEnd () const
	Same but `const`.

ChildRIter	childrenRBegin ()
	Returns: reverse begin-iterator of children.

ConstChildRIter	childrenRBegin () const
	Same but const.

ChildRIter	childrenREnd ()
	Returns: reverse end-iterator of children.

ConstChildRIter	childrenREnd () const
	Same but `const`.

void	push_back (BaseNode *_node)
	Insert _node at the end of the list of children.

void	remove (ChildIter _pos)

size_t	nChildren () const
	number of children

ChildIter	find (BaseNode *_node)

BaseNode *	find (const std::string &_name)

BaseNode *	parent ()
	Get the nodes parent node.

const BaseNode *	parent () const
	Get the nodes parent node.

void	set_parent (BaseNode *_parent)
	Set the parent of this node. More...

StatusMode	status () const
	Get node's status.

void	set_status (StatusMode _s)
	Set the status of this node.

void	hide ()
	Hide Node: set status to HideNode.

void	show ()
	Show node: set status to Active.

bool	visible ()
	Is node visible (status == Active)?

bool	hidden ()
	Is node not visible (status != Active)?

std::string	name () const
	Returns: name of node (needs not be unique)

void	name (const std::string &_name)
	rename a node

unsigned int	id () const

DrawModes::DrawMode	drawMode () const
	Return the own draw modes of this node.

void	drawMode (DrawModes::DrawMode _drawMode)

unsigned int	traverseMode () const
	Return how the node should be traversed.

void	setTraverseMode (unsigned int _mode)
	Set traverse mode for node.

MultipassBitMask	multipassStatus () const
	Get the current multipass settings for the nodes status functions. More...

void	setMultipassStatus (const MultipassBitMask _passStatus)
	Set multipass settings for the nodes status functions. More...

void	multipassStatusSetActive (const unsigned int _i, bool _active)
	Set multipass status to traverse in a specific pass. More...

bool	multipassStatusActive (const unsigned int _i) const
	Get multipass status to traverse in a specific pass. More...

MultipassBitMask	multipassNode () const
	Get the current multipass settings for the node. More...

void	setMultipassNode (const MultipassBitMask _passNode)
	Set multipass settings for the node. More...

void	multipassNodeSetActive (const unsigned int _i, bool _active)
	Set Node status to traverse in a specific pass. More...

bool	multipassNodeActive (const unsigned int _i) const
	Get Node status to traverse in a specific pass. More...

void	setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
	Set custom shaders. More...

void	setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_tessControlShaderFile, const std::string &_tessEvalShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
	Set custom shaders. More...

void	setRenderObjectUniformPool (const GLSL::UniformPool *_pool)
	Set uniforms for shader based rendering. More...

const GLSL::UniformPool *	getRenderObjectUniformPool ()
	Get uniforms for shader based rendering. More...

void	setRenderObjectTexture (int _samplerSlot, GLuint _texId, GLenum _texType=GL_TEXTURE_2D)
	Set textures for shader based rendering. More...

void	setRenderObjectModifier (RenderObjectModifier *_modifier)
	Set modifier for render objects. More...

RenderObjectModifier *	getRenderObjectModifier ()
	Get render-object modifier. More...

void	applyRenderObjectSettings (DrawModes::DrawModePrimitive _primitive, RenderObject *_obj) const
	Set shaders, textures and uniforms as provided by user to a render-object. More...

Private Types
typedef Mesh::Point	Point

typedef Point::value_type	PointScalar

typedef Mesh::Normal	Normal

typedef Normal::value_type	NormalScalar

typedef Mesh::Color	Color

typedef Color::value_type	ColorScalar

Private Attributes
bool	draw_with_offset_

Draw-mesh handling
DrawMeshT< Mesh > *	drawMesh_

Mesh Handling
Mesh &	mesh_
	The mesh this node works on.

const Mesh &	mesh () const
	get the internal mesh

Bounding Box
Vec3d	bbMin_
	bounding box lower left corner

Vec3d	bbMax_
	bounding box upper right corner

void	boundingBox (Vec3d &_bbMin, Vec3d &_bbMax)
	Current bounding box. More...

Normal Buffer
bool	enableNormals_
	Flag if normals should be used.

bool	normalsEnabled ()
	Returns if the normal array is currently activated.

void	enableNormals (bool _enable)
	Enable or disable the use of the normal array.

Color buffer
bool	enableColors_
	Returns if the color array is currently activated.

bool	colorsEnabled ()
	Returns if the color array is currently activated.

void	enableColors (bool _enable)
	Enable or disable the use of color array.

Array control functions
enum	ArrayType { NONE = 0, PER_EDGE_VERTEX_ARRAY = 1, PER_EDGE_COLOR_ARRAY = 2, PER_HALFEDGE_VERTEX_ARRAY = 4, PER_HALFEDGE_COLOR_ARRAY = 8 }
	Enum controlling which array should be used for rendering.

unsigned int	enabled_arrays_
	which arrays are currently enabled?

void	enable_arrays (unsigned int _arrays)
	enable/disable vertex arrays according to the bits in _arrays More...

Rendering functions
void	draw (GLState &_state, const DrawModes::DrawMode &_drawMode)
	Draws the object. More...

void	getRenderObjects (IRenderer _renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const Material _mat)
	Draws the object deferred. More...

DrawMeshT< Mesh > *	getDrawMesh ()
	Get DrawMesh instance.

ACG::SceneGraph::DrawModes::DrawMode	availableDrawModes () const
	return available draw modes More...

void	draw_vertices ()
	draws all vertices of the mesh More...

void	add_point_RenderObjects (IRenderer _renderer, const RenderObject _baseObj)
	Draws the object. More...

void	draw_lines ()
	draws all edges of the mesh More...

void	add_line_RenderObjects (IRenderer _renderer, const RenderObject _baseObj)
	Draws the object. More...

void	draw_halfedges ()
	draws all halfedges of the mesh More...

void	draw_faces ()
	draws all faces of the mesh More...

void	add_face_RenderObjects (IRenderer _renderer, const RenderObject _baseObj, bool _nonindexed=false)
	Draws the object. More...

vertex picking functions
bool	updateVertexPicking_
	Flag indicating if the vertex picking has to be updated.

unsigned int	vertexPickingBaseIndex_
	Index of the first vertex in vertexpicking.

void	pick_vertices (GLState &_state, bool _front=false)
	Renders picking for vertices _front: Only render front vertices (not occluded by geometry)

edge picking functions
bool	updateEdgePicking_
	Flag indicating if the edge picking has to be updated.

unsigned int	edgePickingBaseIndex_
	Index of the first edge in edgepicking.

void	pick_edges (GLState &_state, bool _front=false)
	Renders picking for edges _front: Only render front edges (not occluded by geometry)

face picking functions
bool	updateFacePicking_
	Flag indicating if the edge picking has to be updated.

unsigned int	facePickingBaseIndex_
	Index of the first face in facepicking.

void	pick_faces (GLState &_state)
	Renders picking for faces _front: Only render front faces (not occluded by geometry)

anything picking functions
bool	updateAnyPicking_
	Flag indicating if the any picking has to be updated.

unsigned int	anyPickingBaseIndex_
	Index of the first face in anypicking.

void	pick_any (GLState &_state)
	Renders picking for all primitives. More...

Texture handling
bool	perFaceTextureIndexAvailable_
	This flag indicates if we have a per Face texture index property.

bool	perFaceTextureCoordsAvailable_
	This flag indicates if we have a per Face texture coordinate property.

std::map< int, GLuint > *	textureMap_
	Mapping of mesh face texture indices to gltexture id ( has to be provided externally )

void	setIndexPropertyName (std::string _indexPropertyName)
	set the name of the property used for texture index specification More...

const std::string &	indexPropertyName () const
	Get current texture index property name.

void	setHalfedgeTextcoordPropertyName (std::string _halfedgeTextcoordPropertyName)
	Set the name of the per face texture coordinate property. More...

void	setTextureMap (std::map< int, GLuint > *_map)
	Setup a mapping between internal texture ids on the mesh and the ids for the loaded textures in opengl. More...

Additional Inherited Members
Public Types inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
enum	StatusMode { Active = 0x1, HideNode = 0x2, HideChildren = 0x4, HideSubtree = 0x8 }
	Status modi. More...

enum	TraverseMode { NodeFirst = 0x1, ChildrenFirst = 0x2, SecondPass = 0x4 }
	Node traverse types. More...

typedef std::list< BaseNode * > ::const_iterator	ConstChildIter
	allows to iterate over children

typedef std::list< BaseNode * > ::iterator	ChildIter
	allows to iterate over children

typedef std::list< BaseNode * > ::const_reverse_iterator	ConstChildRIter
	allows to reverse iterate over children

typedef std::list< BaseNode * > ::reverse_iterator	ChildRIter
	allows to reverse iterate over children

enum	PASSES { NOPASS = 0, ALLPASSES = 1 << 0, PASS_1 = 1 << 1, PASS_2 = 1 << 2, PASS_3 = 1 << 3, PASS_4 = 1 << 4, PASS_5 = 1 << 5, PASS_6 = 1 << 6, PASS_7 = 1 << 7, PASS_8 = 1 << 8 }
	This enum should be used to enable rendering of a node in different.

typedef unsigned int	MultipassBitMask
	Multipass pass bit mask type.

Protected Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::MeshNodeBase
	MeshNodeBase (BaseNode *_parent, std::string _name)

void	supplyDrawMesh (DrawMeshBase *drawMeshBase)

Protected Attributes inherited from ACG::SceneGraph::ACG::SceneGraph::MeshNodeBase
DrawMeshBase *	drawMeshBase_

GLuint	polyEdgeBuf_

int	polyEdgeBufSize_

GLuint	polyEdgeBufTex_

Detailed Description

template<class Mesh>
class ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >

This node draws a mesh using triangle strips.

Definition at line 116 of file MeshNode2T.cc.

Member Typedef Documentation

template<class Mesh >

typedef Mesh::Point ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >::Point

private

Typedefs of the mesh representation

These typedefs are used to specifiy and convert all input to float for rendering

Definition at line 170 of file MeshNode2T.cc.

Constructor & Destructor Documentation

template<class Mesh >

ACG::SceneGraph::MeshNodeT< Mesh >::MeshNodeT	(	Mesh &	_mesh,
		BaseNode *	_parent = `0`,
		std::string	_name = `"<MeshNode>"`
	)

Default constructor.

The constructor needs a mesh on which this node will work.

Todo:: : Handle vbo not supported

Definition at line 79 of file MeshNode2T.cc.

Member Function Documentation

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::add_face_RenderObjects	(	IRenderer *	_renderer,
		const RenderObject *	_baseObj,
		bool	_nonindexed = `false`
	)

private

Draws the object.

get bound texture buffer and target

Todo:: We can render also wireframe shaded and with vertex colors

Todo:: Integrate shader here!

Definition at line 1014 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::add_line_RenderObjects	(	IRenderer *	_renderer,
		const RenderObject *	_baseObj
	)

inlineprivate

Draws the object.

get bound texture buffer and target

Todo:: We can render also wireframe shaded and with vertex colors

Todo:: Integrate shader here!

Definition at line 981 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::add_point_RenderObjects	(	IRenderer *	_renderer,
		const RenderObject *	_baseObj
	)

inlineprivate

Draws the object.

get bound texture buffer and target

Todo:: We can render also wireframe shaded and with vertex colors

Todo:: Integrate shader here!

Definition at line 953 of file MeshNode2T.cc.

template<class Mesh >

DrawModes::DrawMode ACG::SceneGraph::MeshNodeT< Mesh >::availableDrawModes ( ) const

virtual

return available draw modes

The drawmodes are constructed based on the mesh properties and the hardware capabilities of the system.

Reimplemented from ACG::SceneGraph::ACG::SceneGraph::BaseNode.

Definition at line 124 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::boundingBox	(	Vec3d &	_bbMin,
		Vec3d &	_bbMax
	)

virtual

Current bounding box.

This function returns the bounding box of the node.

Reimplemented from ACG::SceneGraph::ACG::SceneGraph::BaseNode.

Definition at line 199 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::draw	(	GLState &	_state,
		const DrawModes::DrawMode &	_drawMode
	)

virtual

Draws the object.

get bound texture buffer and target

Todo:: We can render also wireframe shaded and with vertex colors

Todo:: Integrate shader here!

Reimplemented from ACG::SceneGraph::ACG::SceneGraph::BaseNode.

Definition at line 207 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::draw_faces ( )

private

draws all faces of the mesh

Definition at line 1007 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::draw_halfedges ( )

inlineprivate

draws all halfedges of the mesh

Definition at line 995 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::draw_lines ( )

inlineprivate

draws all edges of the mesh

Definition at line 967 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::draw_vertices ( )

inlineprivate

draws all vertices of the mesh

Definition at line 960 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::enable_arrays ( unsigned int _arrays )

enable/disable vertex arrays according to the bits in _arrays

Use this function to enable or disable the appropriate array for rendering. Currently the arrays in ArrayType are supported

Definition at line 1021 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >::getRenderObjects	(	IRenderer *	_renderer,
		GLState &	_state,
		const DrawModes::DrawMode &	_drawMode,
		const Material *	_mat
	)

virtual

Draws the object deferred.

Reimplemented from ACG::SceneGraph::ACG::SceneGraph::BaseNode.

Definition at line 677 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::pick	(	GLState &	_state,
		PickTarget	_target
	)

virtual

Draws the object in picking mode.

Reimplemented from ACG::SceneGraph::ACG::SceneGraph::BaseNode.

Definition at line 1133 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::pick_any ( GLState & _state )

private

Renders picking for all primitives.

Definition at line 1476 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >::set_property_map ( std::map< int, std::string > * _map )

inline

Todo:: Remove all these functions afterwards!

Definition at line 511 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::setHalfedgeTextcoordPropertyName ( std::string _halfedgeTextcoordPropertyName )

Set the name of the per face texture coordinate property.

Set this property for per face per vertex texture coordinates. Additionally you have to set the IndexPropertyName to make texturing with multiple textures work.

Definition at line 1676 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::setIndexPropertyName ( std::string _indexPropertyName )

set the name of the property used for texture index specification

The given property name will define a texture index. This index is used to make a lookup in the texture correspondence map containing for each index the gluint for the texture to be used. A zero in the property means, that no texture will be bound for the face. If you define a non existing name here, texture switching will be disabled and it is assumed that a texture is bound already.

Todo:: Remove the external texture loading and do it here.

Definition at line 1659 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >::setTextureMap ( std::map< int, GLuint > * _map )

inline

Setup a mapping between internal texture ids on the mesh and the ids for the loaded textures in opengl.

Parameters

_map	maps between an int index stored in the Mesh describing which texture to use for a face, and the GluInt name of the texture bound by the TextureNode. If such a map is not available ( =0 ), assume TextureNode has already bound a texture And render without switching textures

Definition at line 493 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::update_color ( )

the colors of the mesh have changed

call this function if you changed the colors of the mesh. All buffers related to the color will be updated.

if you also updated the topology, the color is updated automatically

Definition at line 1645 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::update_geometry ( )

the geometry of the mesh has changed

call this function if you changed the geometry of the mesh. All buffers related to the geometry will be updated.

Todo:: check the following statements. If only geometry changed, the normals,vertices have to be updated nothing else!

Definition at line 1580 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::update_textures ( )

force an texture update

This function has to be called, when the textures have changed

Definition at line 1632 of file MeshNode2T.cc.

template<class Mesh >

void ACG::SceneGraph::MeshNodeT< Mesh >::update_topology ( )

the topology of the mesh has changed

call this function if you changed the topology of the mesh. All buffers related to the topology will be updated.

this also triggers an update for the colors

Definition at line 1617 of file MeshNode2T.cc.

The documentation for this class was generated from the following file:

ACG/Scenegraph/MeshNode2T.cc

Public Member Functions

Private Types

Private Attributes

Mesh Handling

Bounding Box

Normal Buffer

Color buffer

Array control functions

Rendering functions

vertex picking functions

edge picking functions

face picking functions

anything picking functions

Texture handling

Additional Inherited Members

Detailed Description

template<class Mesh> class ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<class Mesh>
class ACG::SceneGraph::ACG::SceneGraph::MeshNodeT< Mesh >
