#include <libs_required/OpenMesh/src/OpenMesh/Core/Mesh/BaseKernel.hh>

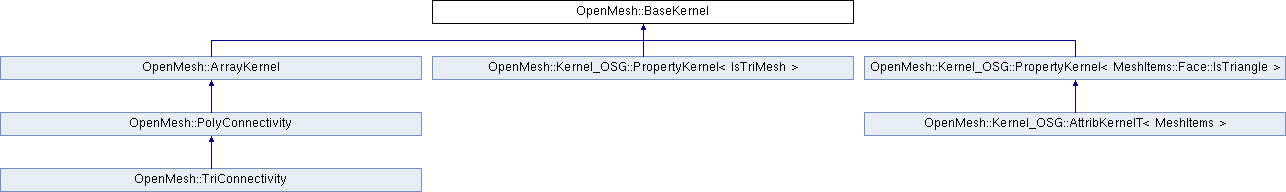

Inheritance diagram for OpenMesh::BaseKernel:

Public Types
typedef PropertyContainer::iterator	prop_iterator

typedef PropertyContainer::const_iterator	const_prop_iterator

Public Member Functions
template<class T >
void	copy_property (VPropHandleT< T > &_ph, VertexHandle _vh_from, VertexHandle _vh_to)

template<class T >
void	copy_property (HPropHandleT< T > _ph, HalfedgeHandle _hh_from, HalfedgeHandle _hh_to)

template<class T >
void	copy_property (EPropHandleT< T > _ph, EdgeHandle _eh_from, EdgeHandle _eh_to)

template<class T >
void	copy_property (FPropHandleT< T > _ph, FaceHandle _fh_from, FaceHandle _fh_to)

void	copy_all_properties (VertexHandle _vh_from, VertexHandle _vh_to, bool _copyBuildIn=false)

void	copy_all_properties (HalfedgeHandle _hh_from, HalfedgeHandle _hh_to, bool _copyBuildIn=false)

void	copy_all_properties (EdgeHandle _eh_from, EdgeHandle _eh_to, bool _copyBuildIn=false)

void	copy_all_properties (FaceHandle _fh_from, FaceHandle _fh_to, bool _copyBuildIn=false)

size_t	n_vprops (void) const

size_t	n_eprops (void) const

size_t	n_hprops (void) const

size_t	n_fprops (void) const

size_t	n_mprops (void) const

BaseProperty *	_get_vprop (const std::string &_name)

BaseProperty *	_get_eprop (const std::string &_name)

BaseProperty *	_get_hprop (const std::string &_name)

BaseProperty *	_get_fprop (const std::string &_name)

BaseProperty *	_get_mprop (const std::string &_name)

const BaseProperty *	_get_vprop (const std::string &_name) const

const BaseProperty *	_get_eprop (const std::string &_name) const

const BaseProperty *	_get_hprop (const std::string &_name) const

const BaseProperty *	_get_fprop (const std::string &_name) const

const BaseProperty *	_get_mprop (const std::string &_name) const

BaseProperty &	_vprop (size_t _idx)

BaseProperty &	_eprop (size_t _idx)

BaseProperty &	_hprop (size_t _idx)

BaseProperty &	_fprop (size_t _idx)

BaseProperty &	_mprop (size_t _idx)

const BaseProperty &	_vprop (size_t _idx) const

const BaseProperty &	_eprop (size_t _idx) const

const BaseProperty &	_hprop (size_t _idx) const

const BaseProperty &	_fprop (size_t _idx) const

const BaseProperty &	_mprop (size_t _idx) const

size_t	_add_vprop (BaseProperty *_bp)

size_t	_add_eprop (BaseProperty *_bp)

size_t	_add_hprop (BaseProperty *_bp)

size_t	_add_fprop (BaseProperty *_bp)

size_t	_add_mprop (BaseProperty *_bp)

virtual size_t	n_vertices () const

virtual size_t	n_halfedges () const

virtual size_t	n_edges () const

virtual size_t	n_faces () const

void	property_stats () const

void	property_stats (std::ostream &_ostr) const

void	vprop_stats (std::string &_string) const

void	hprop_stats (std::string &_string) const

void	eprop_stats (std::string &_string) const

void	fprop_stats (std::string &_string) const

void	mprop_stats (std::string &_string) const

void	vprop_stats () const

void	hprop_stats () const

void	eprop_stats () const

void	fprop_stats () const

void	mprop_stats () const

void	vprop_stats (std::ostream &_ostr) const

void	hprop_stats (std::ostream &_ostr) const

void	eprop_stats (std::ostream &_ostr) const

void	fprop_stats (std::ostream &_ostr) const

void	mprop_stats (std::ostream &_ostr) const

prop_iterator	vprops_begin ()

prop_iterator	vprops_end ()

const_prop_iterator	vprops_begin () const

const_prop_iterator	vprops_end () const

prop_iterator	eprops_begin ()

prop_iterator	eprops_end ()

const_prop_iterator	eprops_begin () const

const_prop_iterator	eprops_end () const

prop_iterator	hprops_begin ()

prop_iterator	hprops_end ()

const_prop_iterator	hprops_begin () const

const_prop_iterator	hprops_end () const

prop_iterator	fprops_begin ()

prop_iterator	fprops_end ()

const_prop_iterator	fprops_begin () const

const_prop_iterator	fprops_end () const

prop_iterator	mprops_begin ()

prop_iterator	mprops_end ()

const_prop_iterator	mprops_begin () const

const_prop_iterator	mprops_end () const

Add a property to a mesh item
template<class T >
void	add_property (VPropHandleT< T > &_ph, const std::string &_name="<vprop>")

template<class T >
void	add_property (HPropHandleT< T > &_ph, const std::string &_name="<hprop>")

template<class T >
void	add_property (EPropHandleT< T > &_ph, const std::string &_name="<eprop>")

template<class T >
void	add_property (FPropHandleT< T > &_ph, const std::string &_name="<fprop>")

template<class T >
void	add_property (MPropHandleT< T > &_ph, const std::string &_name="<mprop>")

Removing a property from a mesh tiem
template<typename T >
void	remove_property (VPropHandleT< T > &_ph)

template<typename T >
void	remove_property (HPropHandleT< T > &_ph)

template<typename T >
void	remove_property (EPropHandleT< T > &_ph)

template<typename T >
void	remove_property (FPropHandleT< T > &_ph)

template<typename T >
void	remove_property (MPropHandleT< T > &_ph)

Get property handle by name
template<class T >
bool	get_property_handle (VPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (HPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (EPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (FPropHandleT< T > &_ph, const std::string &_name) const

template<class T >
bool	get_property_handle (MPropHandleT< T > &_ph, const std::string &_name) const

Access a property
template<class T >
PropertyT< T > &	property (VPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (VPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	property (HPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (HPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	property (EPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (EPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	property (FPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	property (FPropHandleT< T > _ph) const

template<class T >
PropertyT< T > &	mproperty (MPropHandleT< T > _ph)

template<class T >
const PropertyT< T > &	mproperty (MPropHandleT< T > _ph) const

Access a property element using a handle to a mesh item
template<class T >
VPropHandleT< T >::reference	property (VPropHandleT< T > _ph, VertexHandle _vh)

template<class T >
VPropHandleT< T >::const_reference	property (VPropHandleT< T > _ph, VertexHandle _vh) const

template<class T >
HPropHandleT< T >::reference	property (HPropHandleT< T > _ph, HalfedgeHandle _hh)

template<class T >
HPropHandleT< T >::const_reference	property (HPropHandleT< T > _ph, HalfedgeHandle _hh) const

template<class T >
EPropHandleT< T >::reference	property (EPropHandleT< T > _ph, EdgeHandle _eh)

template<class T >
EPropHandleT< T >::const_reference	property (EPropHandleT< T > _ph, EdgeHandle _eh) const

template<class T >
FPropHandleT< T >::reference	property (FPropHandleT< T > _ph, FaceHandle _fh)

template<class T >
FPropHandleT< T >::const_reference	property (FPropHandleT< T > _ph, FaceHandle _fh) const

template<class T >
MPropHandleT< T >::reference	property (MPropHandleT< T > _ph)

template<class T >
MPropHandleT< T >::const_reference	property (MPropHandleT< T > _ph) const

Protected Member Functions
BaseProperty &	_vprop (BaseHandle _h)

BaseProperty &	_eprop (BaseHandle _h)

BaseProperty &	_hprop (BaseHandle _h)

BaseProperty &	_fprop (BaseHandle _h)

BaseProperty &	_mprop (BaseHandle _h)

const BaseProperty &	_vprop (BaseHandle _h) const

const BaseProperty &	_eprop (BaseHandle _h) const

const BaseProperty &	_hprop (BaseHandle _h) const

const BaseProperty &	_fprop (BaseHandle _h) const

const BaseProperty &	_mprop (BaseHandle _h) const

void	vprops_reserve (size_t _n) const
	Reserves space for `_n` elements in all vertex property vectors.

void	vprops_resize (size_t _n) const
	Resizes all vertex property vectors to the specified size.

void	vprops_resize_if_smaller (size_t _n) const

void	vprops_clear ()

void	vprops_swap (unsigned int _i0, unsigned int _i1) const

void	hprops_reserve (size_t _n) const

void	hprops_resize (size_t _n) const

void	hprops_clear ()

void	hprops_swap (unsigned int _i0, unsigned int _i1) const

void	eprops_reserve (size_t _n) const

void	eprops_resize (size_t _n) const

void	eprops_clear ()

void	eprops_swap (unsigned int _i0, unsigned int _i1) const

void	fprops_reserve (size_t _n) const

void	fprops_resize (size_t _n) const

void	fprops_clear ()

void	fprops_swap (unsigned int _i0, unsigned int _i1) const

void	mprops_resize (size_t _n) const

void	mprops_clear ()

Private Attributes
PropertyContainer	vprops_

PropertyContainer	hprops_

PropertyContainer	eprops_

PropertyContainer	fprops_

PropertyContainer	mprops_

Detailed Description

This class provides the basic property management like adding/removing properties and access to properties. All operations provided by BaseKernel need at least a property handle (VPropHandleT, EPropHandleT, HPropHandleT, FPropHandleT, MPropHandleT). which keeps the data type of the property, too.

There are two types of properties:

Standard properties - mesh data (e.g. vertex normal or face color)
Custom properties - user defined data

The differentiation is only semantically, technically both are equally handled. Therefore the methods provided by the BaseKernel are applicable to both property types.

Attention: Since the class PolyMeshT derives from a kernel, hence all public elements of BaseKernel are usable.

Definition at line 99 of file BaseKernel.hh.

Member Function Documentation

template<class T >

void OpenMesh::BaseKernel::add_property	(	VPropHandleT< T > &	_ph,
		const std::string &	_name = `"<vprop>"`
	)

inline

Adds a property

Depending on the property handle type a vertex, (half-)edge, face or mesh property is added to the mesh. If the action fails the handle is invalid. On success the handle must be used to access the property data with property().

Parameters

_ph	A property handle defining the data type to bind to mesh. On success the handle is valid else invalid.
_name	Optional name of property. Following restrictions apply to the name: Maximum length of name is 256 characters The prefixes matching "^[vhefm]:" are reserved for internal usage. The expression "^<.*>$" is reserved for internal usage.

Definition at line 138 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::add_property	(	HPropHandleT< T > &	_ph,
		const std::string &	_name = `"<hprop>"`
	)

inline

Adds a property

Depending on the property handle type a vertex, (half-)edge, face or mesh property is added to the mesh. If the action fails the handle is invalid. On success the handle must be used to access the property data with property().

Parameters

_ph	A property handle defining the data type to bind to mesh. On success the handle is valid else invalid.
_name	Optional name of property. Following restrictions apply to the name: Maximum length of name is 256 characters The prefixes matching "^[vhefm]:" are reserved for internal usage. The expression "^<.*>$" is reserved for internal usage.

Definition at line 145 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::add_property	(	EPropHandleT< T > &	_ph,
		const std::string &	_name = `"<eprop>"`
	)

inline

Adds a property

Depending on the property handle type a vertex, (half-)edge, face or mesh property is added to the mesh. If the action fails the handle is invalid. On success the handle must be used to access the property data with property().

Parameters

_ph	A property handle defining the data type to bind to mesh. On success the handle is valid else invalid.
_name	Optional name of property. Following restrictions apply to the name: Maximum length of name is 256 characters The prefixes matching "^[vhefm]:" are reserved for internal usage. The expression "^<.*>$" is reserved for internal usage.

Definition at line 152 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::add_property	(	FPropHandleT< T > &	_ph,
		const std::string &	_name = `"<fprop>"`
	)

inline

Adds a property

Depending on the property handle type a vertex, (half-)edge, face or mesh property is added to the mesh. If the action fails the handle is invalid. On success the handle must be used to access the property data with property().

Parameters

_ph	A property handle defining the data type to bind to mesh. On success the handle is valid else invalid.
_name	Optional name of property. Following restrictions apply to the name: Maximum length of name is 256 characters The prefixes matching "^[vhefm]:" are reserved for internal usage. The expression "^<.*>$" is reserved for internal usage.

Definition at line 159 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::add_property	(	MPropHandleT< T > &	_ph,
		const std::string &	_name = `"<mprop>"`
	)

inline

Adds a property

Depending on the property handle type a vertex, (half-)edge, face or mesh property is added to the mesh. If the action fails the handle is invalid. On success the handle must be used to access the property data with property().

Parameters

_ph	A property handle defining the data type to bind to mesh. On success the handle is valid else invalid.
_name	Optional name of property. Following restrictions apply to the name: Maximum length of name is 256 characters The prefixes matching "^[vhefm]:" are reserved for internal usage. The expression "^<.*>$" is reserved for internal usage.

Definition at line 166 of file BaseKernel.hh.

void OpenMesh::BaseKernel::copy_all_properties	(	VertexHandle	_vh_from,
		VertexHandle	_vh_to,
		bool	_copyBuildIn = `false`
	)

inline

Copies all properties from one mesh element to another (of the same type)

Parameters

_vh_from	A vertex handle - source
_vh_to	A vertex handle - target
_copyBuildIn	Should the internal properties (position, normal, texture coordinate,..) be copied?

Definition at line 476 of file BaseKernel.hh.

void OpenMesh::BaseKernel::copy_all_properties	(	HalfedgeHandle	_hh_from,
		HalfedgeHandle	_hh_to,
		bool	_copyBuildIn = `false`
	)

inline

Copies all properties from one mesh element to another (of the same type)

Parameters

_hh_from	A halfedge handle - source
_hh_to	A halfedge handle - target
_copyBuildIn	Should the internal properties (position, normal, texture coordinate,..) be copied?

Definition at line 495 of file BaseKernel.hh.

void OpenMesh::BaseKernel::copy_all_properties	(	EdgeHandle	_eh_from,
		EdgeHandle	_eh_to,
		bool	_copyBuildIn = `false`
	)

inline

Copies all properties from one mesh element to another (of the same type)

Parameters

_eh_from	An edge handle - source
_eh_to	An edge handle - target
_copyBuildIn	Should the internal properties (position, normal, texture coordinate,..) be copied?

Definition at line 514 of file BaseKernel.hh.

void OpenMesh::BaseKernel::copy_all_properties	(	FaceHandle	_fh_from,
		FaceHandle	_fh_to,
		bool	_copyBuildIn = `false`
	)

inline

Copies all properties from one mesh element to another (of the same type)

Parameters

_fh_from	A face handle - source
_fh_to	A face handle - target
_copyBuildIn	Should the internal properties (position, normal, texture coordinate,..) be copied?

Definition at line 533 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::copy_property	(	VPropHandleT< T > &	_ph,
		VertexHandle	_vh_from,
		VertexHandle	_vh_to
	)

inline

Copies a single property from one mesh element to another (of the same type)

Parameters

_ph	A vertex property handle
_vh_from	From vertex handle
_vh_to	To vertex handle

Definition at line 424 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::copy_property	(	HPropHandleT< T >	_ph,
		HalfedgeHandle	_hh_from,
		HalfedgeHandle	_hh_to
	)

inline

Copies a single property from one mesh element to another (of the same type)

Parameters

_ph	A halfedge property handle
_hh_from	From halfedge handle
_hh_to	To halfedge handle

Definition at line 436 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::copy_property	(	EPropHandleT< T >	_ph,
		EdgeHandle	_eh_from,
		EdgeHandle	_eh_to
	)

inline

Copies a single property from one mesh element to another (of the same type)

Parameters

_ph	An edge property handle
_eh_from	From edge handle
_eh_to	To edge handle

Definition at line 448 of file BaseKernel.hh.

template<class T >

void OpenMesh::BaseKernel::copy_property	(	FPropHandleT< T >	_ph,
		FaceHandle	_fh_from,
		FaceHandle	_fh_to
	)

inline

Copies a single property from one mesh element to another (of the same type)

Parameters

_ph	A face property handle
_fh_from	From face handle
_fh_to	To face handle

Definition at line 460 of file BaseKernel.hh.

template<class T >

bool OpenMesh::BaseKernel::get_property_handle	(	VPropHandleT< T > &	_ph,
		const std::string &	_name
	)		const

inline

Retrieves the handle to a named property by it's name.

Parameters

_ph	A property handle. On success the handle is valid else invalid.
_name	Name of wanted property.

Returns: true if such a named property is available, else false.

Definition at line 243 of file BaseKernel.hh.

template<class T >

bool OpenMesh::BaseKernel::get_property_handle	(	HPropHandleT< T > &	_ph,
		const std::string &	_name
	)		const

inline

Retrieves the handle to a named property by it's name.

Parameters

_ph	A property handle. On success the handle is valid else invalid.
_name	Name of wanted property.

Returns: true if such a named property is available, else false.

Definition at line 250 of file BaseKernel.hh.

template<class T >

bool OpenMesh::BaseKernel::get_property_handle	(	EPropHandleT< T > &	_ph,
		const std::string &	_name
	)		const

inline

Retrieves the handle to a named property by it's name.

Parameters

_ph	A property handle. On success the handle is valid else invalid.
_name	Name of wanted property.

Returns: true if such a named property is available, else false.

Definition at line 257 of file BaseKernel.hh.

template<class T >

bool OpenMesh::BaseKernel::get_property_handle	(	FPropHandleT< T > &	_ph,
		const std::string &	_name
	)		const

inline

Retrieves the handle to a named property by it's name.

Parameters

_ph	A property handle. On success the handle is valid else invalid.
_name	Name of wanted property.

Returns: true if such a named property is available, else false.

Definition at line 264 of file BaseKernel.hh.

template<class T >

bool OpenMesh::BaseKernel::get_property_handle	(	MPropHandleT< T > &	_ph,
		const std::string &	_name
	)		const

inline

Retrieves the handle to a named property by it's name.

Parameters

_ph	A property handle. On success the handle is valid else invalid.
_name	Name of wanted property.

Returns: true if such a named property is available, else false.

Definition at line 271 of file BaseKernel.hh.

template<class T >

PropertyT<T>& OpenMesh::BaseKernel::mproperty ( MPropHandleT< T > _ph )

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 330 of file BaseKernel.hh.

template<class T >

const PropertyT<T>& OpenMesh::BaseKernel::mproperty ( MPropHandleT< T > _ph ) const

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 334 of file BaseKernel.hh.

template<class T >

PropertyT<T>& OpenMesh::BaseKernel::property ( VPropHandleT< T > _ph )

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 294 of file BaseKernel.hh.

template<class T >

const PropertyT<T>& OpenMesh::BaseKernel::property ( VPropHandleT< T > _ph ) const

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 298 of file BaseKernel.hh.

template<class T >

PropertyT<T>& OpenMesh::BaseKernel::property ( HPropHandleT< T > _ph )

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 303 of file BaseKernel.hh.

template<class T >

const PropertyT<T>& OpenMesh::BaseKernel::property ( HPropHandleT< T > _ph ) const

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 307 of file BaseKernel.hh.

template<class T >

PropertyT<T>& OpenMesh::BaseKernel::property ( EPropHandleT< T > _ph )

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 312 of file BaseKernel.hh.

template<class T >

const PropertyT<T>& OpenMesh::BaseKernel::property ( EPropHandleT< T > _ph ) const

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 316 of file BaseKernel.hh.

template<class T >

PropertyT<T>& OpenMesh::BaseKernel::property ( FPropHandleT< T > _ph )

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 321 of file BaseKernel.hh.

template<class T >

const PropertyT<T>& OpenMesh::BaseKernel::property ( FPropHandleT< T > _ph ) const

inline

Access a property

This method returns a reference to property. The property handle must be valid! The result is unpredictable if the handle is invalid!

Parameters

_ph	A valid (!) property handle.

Returns: The wanted property if the handle is valid.

Definition at line 325 of file BaseKernel.hh.

template<class T >

VPropHandleT<T>::reference OpenMesh::BaseKernel::property	(	VPropHandleT< T >	_ph,
		VertexHandle	_vh
	)

inline
