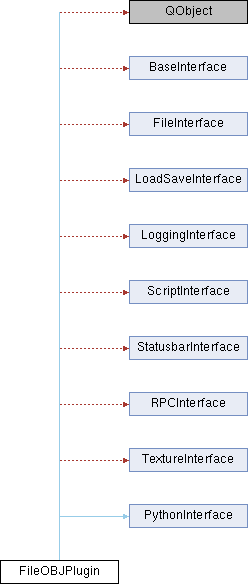

Inheritance diagram for FileOBJPlugin:

Public Slots
int	loadObject (QString _filename)
	Loads Object and converts it to a triangle mesh if possible.

int	loadObject (QString _filename, DataType _type)
	load object and force type More...

bool	saveObject (int _id, QString _filename)

QString	version ()

Signals
void	openedFile (int _id)

void	addEmptyObject (DataType _type, int &_id)

void	load (QString _filename, DataType _type, int &_id)

void	save (int _id, QString _filename)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	updateView ()

void	updatedObject (int _identifier, const UpdateType &_type)

void	deleteObject (int _id)

void	showStatusMessage (QString _message, int _timeout=0)

void	setStatus (ApplicationStatus::applicationStatus _status)

void	pluginExists (QString _pluginName, bool &_exists)

void	setTextureMode (QString _textureName, QString _mode, int _id)

void	switchTexture (QString _textureName, int _id)

void	addMultiTexture (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)

void	textureFilename (int, QString, QString &)

void	textureIndex (QString _name, int _id, int &_index)

void	getCurrentTexture (int, QString &)

void	textureName (int, int, QString &)

void	getSubTextures (int, QString, QStringList &)

void	textureIndexPropertyName (int, QString &)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from FileInterface
virtual void	openedFile (int _id)
	This signal has to be emitted if an object has been loaded from a file. More...

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed. More...

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeScript (QString _script)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from StatusbarInterface
virtual void	showStatusMessage (QString _message, int _timeout=0)
	Show a message in the status bar. More...

Signals inherited from RPCInterface
virtual void	pluginExists (QString _pluginName, bool &_exists)

Signals inherited from TextureInterface
virtual void	addTexture (QString _name, QString _filename, uint _dimension, int _id)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

Public Member Functions
	FileOBJPlugin ()
	Constructor.

QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

DataType	supportedType ()
	Return your supported object type( e.g. DATA_TRIANGLE_MESH ) More...

QString	getSaveFilters ()

QString	getLoadFilters ()

QWidget *	saveOptionsWidget (QString)

QWidget *	loadOptionsWidget (QString)

Private Slots
void	fileOpened (int)

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from FileInterface
virtual int	loadObject (QString _filename)=0
	Load an object from the given file. More...

virtual int	loadObject (QString _filename, DataType _type)
	Load an object from the given file. More...

Private Member Functions
void	noguiSupported ()

void	initializePlugin ()
	Initialize Plugin. More...

void	slotLoadDefault ()
	Slot called when user wants to save the given Load options as default.

void	slotSaveDefault ()
	Slot called when user wants to save the given Save options as default.

void	slotHandleCheckBoxes (bool _checked)

void	handleTrimeshDialog ()

void	checkTypes (QByteArray &_bufferedFile, QString _filename, OBJImporter &_importer, QStringList &_includes)
	Reader functions. More...

bool	readMaterial (QString _filename, OBJImporter &_importer)

void	readOBJFile (QByteArray &_bufferedFile, QString _filename, OBJImporter &_importer)

void	createAllGroupObjects (OBJImporter &_importer)

template<class MeshT >
void	backupTextureCoordinates (MeshT &_mesh)
	creates a backup of the original per vertex/face texture coordinates

void	addTextures (OBJImporter &_importer, int _objectID)

void	convertToOBJName (QString &_name)
	Convert non-valid filenames (e.g. of groups that end with .jpg) to valid .objs.

template<class MeshT >
Material &	getMaterial (MeshT &_mesh, const OpenMesh::FaceHandle &_fh, int _objId)

template<class MeshT >
bool	writeMaterial (QString _filename, MeshT &_mesh, int _objId)
	writer functions

template<class MeshT >
bool	writeMesh (std::ostream &_out, QString _filename, MeshT &_mesh, int _objId)

Private Member Functions inherited from BaseInterface
virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from FileInterface
virtual	~FileInterface ()
	Destructor.

virtual bool	saveObject (int _id, QString _filename)=0
	Save an object from the given file. More...

virtual bool	saveObjects (IdList _ids, QString _filename)
	Save multiple objects to one file. More...

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	executeFileScript (QString _filename)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from StatusbarInterface
virtual	~StatusbarInterface ()
	Destructor.

void	setStatus (ApplicationStatus::applicationStatus _status)
	Sets the status icon of the StatusBar. More...

void	clearStatusMessage ()
	Removes the current message from the statusBar. More...

void	addWidgetToStatusbar (QWidget *_widget)
	Add a widget on the right side of the statusBar. More...

Private Member Functions inherited from RPCInterface
virtual	~RPCInterface ()
	Destructor.

virtual void	functionExists (QString _pluginName, QString _functionName, bool &_exists)

Private Member Functions inherited from TextureInterface
virtual void	addTexture (QString _name, QImage _image, uint _dimension, int _id)
	Emit this Signal if a texture has been added (Property Name,image,Dimension) More...

virtual void	addTexture (QString _name, QString _filename, uint _dimension)
	Emit this Signal if a texture has been added (Property Name,filename,Dimension) More...

virtual void	addTexture (QString _name, QImage _image, uint _dimension)
	Emit this Signal if a texture has been added (Property Name,image,Dimension) More...

virtual void	addMultiTexture (QString _textureGroup, QString _name, QString _filename, int _id, int &_textureId)
	Emit this Signal if you want to add a texture for a multitexturing mode. More...

virtual void	addMultiTexture (QString _textureGroup, QString _name, QImage _image, int _id, int &_textureId)
	Emit this Signal if you want to add a texture for a multitexturing mode. More...

virtual void	updateTexture (QString _textureName, int _identifier)
	Tell Plugins to update the given texture for the given identifier This signal can be called from any thread. .

virtual void	updateAllTextures ()
	Tell Plugins to update all textures.

virtual void	updatedTextures (QString, int)
	emit this signal if you updated a texture More...

virtual void	switchTexture (QString _textureName, int _id)
	emit this signal if you want to switch the texture of a specific object This signal can be called from any thread.

virtual void	switchTexture (QString _textureName)
	emit this signal if you want to switch the global texture This signal can be called from any thread.

virtual void	setTextureMode (QString _textureName, QString _mode)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	setTextureMode (QString _textureName, QString _mode, int _id)
	emit this signal if you want to set a special mode for this texture (Clamping,...) More...

virtual void	textureChangeImage (QString _textureName, QImage &_image, int _id)
	Change the texture image of a given texture. More...

virtual void	textureChangeImage (QString _textureName, QImage &_image)
	Change the texture image of a given global texture. More...

virtual void	textureGetImage (QString _textureName, QImage &_image, int _id)
	get the texture image of a given texture More...

virtual void	textureGetImage (QString _textureName, QImage &_image)
	Get the texture image of a given global texture. More...

virtual void	textureIndex (QString _textureName, int _id, int &_index)
	Get the texture index of a given texture. More...

virtual void	textureIndexPropertyName (int _id, QString &_propertyName)
	Get the name of the texture index property. More...

virtual void	textureName (int _id, int _textureIndex, QString &_textureName)
	get the name of the texture with given texture index More...

virtual void	textureFilename (int _id, QString _textureName, QString &_textureFilename)
	get the filename of the texture with given texture index More...

virtual void	getCurrentTexture (int _id, QString &_textureName)
	get the name of the texture which is currently enabled More...

virtual void	getSubTextures (int _id, QString _multiTextureName, QStringList &_subTextures)
	get the names of all sub-textures under the given multiTexture More...

virtual	~TextureInterface ()
	Destructor.

Private Member Functions inherited from PythonInterface
virtual	~PythonInterface ()
	Destructor.

Private Attributes
MaterialList	materials_
	List that contains the material properties.

unsigned int	materialErrors_
	number of defect materials encountered during writing

QWidget *	loadOptions_

QWidget *	saveOptions_

QCheckBox *	saveBinary_

QCheckBox *	saveVertexColor_

QCheckBox *	saveFaceColor_

QCheckBox *	saveFaceColorOverride_

QCheckBox *	saveAlpha_

QCheckBox *	saveNormals_

QCheckBox *	saveTexCoords_

QCheckBox *	saveTextures_

QCheckBox *	saveCopyTextures_

QCheckBox *	saveCreateTexFolder_

QLabel *	savePrecisionLabel_

QSpinBox *	savePrecision_

QPushButton *	saveDefaultButton_

QComboBox *	triMeshHandling_

QCheckBox *	loadVertexColor_

QCheckBox *	loadFaceColor_

QCheckBox *	loadAlpha_

QCheckBox *	loadNormals_

QCheckBox *	loadTexCoords_

QCheckBox *	loadTextures_

QPushButton *	loadDefaultButton_

bool	forceTriangleMesh_

bool	forcePolyMesh_

QString	textureIndexPropertyName_

bool	textureIndexPropFetched_

std::map< int, QString >	texIndexFileMap_

OBJImporter::ObjectOptionsE	trimeshOptions_

Detailed Description

Definition at line 88 of file FileOBJ.hh.

Member Function Documentation

◆ checkTypes()

void FileOBJPlugin::checkTypes	(	QByteArray &	_bufferedFile,
		QString	_filename,
		OBJImporter &	_importer,
		QStringList &	_includes
	)

private

Reader functions.

check file types and read general info like vertices

Definition at line 1328 of file FileOBJ.cc.

◆ description()

QString FileOBJPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 159 of file FileOBJ.hh.

◆ getLoadFilters()

QString FileOBJPlugin::getLoadFilters ( )

virtual

Return the Qt Filters for File dialogs when loading files (e.g. "Off files ( *.off )" )

Implements FileInterface.

Definition at line 121 of file FileOBJ.cc.

◆ getSaveFilters()

QString FileOBJPlugin::getSaveFilters ( )

virtual

Get the Qt Filters for Filedialogs when saving files (e.g. "Off files ( *.off )" )

Implements FileInterface.

Definition at line 127 of file FileOBJ.cc.

◆ initializePlugin()

void FileOBJPlugin::initializePlugin ( )

privatevirtual

Initialize Plugin.

This slot is called if the plugin is loaded and has to be initialized. All initialization stuff in this slot has to stay inside the plugin, no external signals are allowed here (and will be ignored). Don't create any objects via PluginFunctions here. Use the pluginsInitialized() slot for external initialization. After execution of this slot your plugin should be fully functional. Only gui elements may be uninitialized and should be created in pluginsInitialized().

Reimplemented from BaseInterface.

Definition at line 116 of file FileOBJ.cc.

◆ loadObject

int FileOBJPlugin::loadObject	(	QString	_filename,
		DataType	_type
	)

slot

load object and force type

load a obj and force mesh datatype

Definition at line 2126 of file FileOBJ.cc.

◆ loadOptionsWidget()

QWidget * FileOBJPlugin::loadOptionsWidget ( QString _currentFilter )

virtual

You can provide a special widget showing options for loading your file types depending on the current filter

_currentFilter: one filter from loadFilters

Return 0 when you don't need one

Implements FileInterface.

Definition at line 2333 of file FileOBJ.cc.

◆ name()

QString FileOBJPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 158 of file FileOBJ.hh.

◆ noguiSupported()

void FileOBJPlugin::noguiSupported ( )

inlineprivatevirtual

Using this function you can inform the core that your plugin can run without creating a widget. If your plugin does not implement this function, it will not be loaded in scripting mode without gui. You don't have to do anything in this function.

Reimplemented from BaseInterface.

Definition at line 138 of file FileOBJ.hh.

◆ saveOptionsWidget()

QWidget * FileOBJPlugin::saveOptionsWidget ( QString _currentFilter )

virtual

You can provide a special widget showing options for saving your file types depending on the current filter

_currentFilter: one filter from saveFilters

Return 0 when you don't need one

Implements FileInterface.

Definition at line 2266 of file FileOBJ.cc.

◆ supportedType()

DataType FileOBJPlugin::supportedType ( )

virtual

Return your supported object type( e.g. DATA_TRIANGLE_MESH )

If you support multiple DataTypes you can combine them bitwise here. The function is used from the load and save code to check if your plugin can handle an object of a given dataType.

Implements FileInterface.

Definition at line 133 of file FileOBJ.cc.

The documentation for this class was generated from the following files:

PluginCollection-FilePlugins/Plugin-FileOBJ/FileOBJ.hh
PluginCollection-FilePlugins/Plugin-FileOBJ/FileOBJ.cc
PluginCollection-FilePlugins/Plugin-FileOBJ/FileOBJT_impl.hh

Public Slots

Signals

Public Member Functions

Private Slots

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ checkTypes()

◆ description()

◆ getLoadFilters()

◆ getSaveFilters()

◆ initializePlugin()

◆ loadObject

◆ loadOptionsWidget()

◆ name()

◆ noguiSupported()

◆ saveOptionsWidget()

◆ supportedType()
