OpenMesh::Smoother::SmootherT< Mesh > Class Template Referenceabstract

#include <libs_required/OpenMesh/src/OpenMesh/Tools/Smoother/SmootherT.hh>

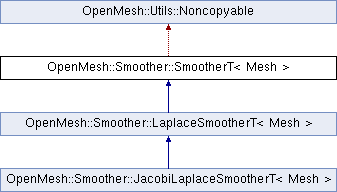

Inheritance diagram for OpenMesh::Smoother::SmootherT< Mesh >:
OpenMesh::Utils::Noncopyable OpenMesh::Smoother::LaplaceSmootherT< Mesh > OpenMesh::Smoother::JacobiLaplaceSmootherT< Mesh >

Public Types

enum  Component { Tangential, Normal, Tangential_and_Normal }

enum  Continuity { C0, C1, C2 }

typedef Mesh::Scalar Scalar

typedef Mesh::Point Point

typedef Mesh::Normal NormalType

typedef Mesh::VertexHandle VertexHandle

typedef Mesh::EdgeHandle EdgeHandle


Public Member Functions

 SmootherT (Mesh &_mesh)
 constructor & destructor More...

Initialization and algorithm execution
void initialize (Component _comp, Continuity _cont)

virtual void smooth (unsigned int _n)
 Do _n smoothing iterations.

Error control functions
void set_relative_local_error (Scalar _err)
 Set local error relative to bounding box. More...

void set_absolute_local_error (Scalar _err)
 Set local error as an absolute value. More...

void disable_local_error_check ()
 Disable error control of the smoother. More...

void skip_features (bool _state)
 enable or disable feature handling More...


Protected Member Functions

virtual void compute_new_positions_C0 ()=0

virtual void compute_new_positions_C1 ()=0

const Point & orig_position (VertexHandle _vh) const

const NormalType & orig_normal (VertexHandle _vh) const

const Point & new_position (VertexHandle _vh) const

void set_new_position (VertexHandle _vh, const Point &_p)

bool is_active (VertexHandle _vh) const

Component component () const

Continuity continuity () const


Protected Attributes

Mesh & mesh_

bool skip_features_


Private Member Functions

void set_active_vertices ()
 Find active vertices. Resets tagged status ! More...

void compute_new_positions ()

void project_to_tangent_plane ()

void local_error_check ()

void move_points ()


Private Attributes

Scalar tolerance_

Scalar normal_deviation_

Component component_

Continuity continuity_

OpenMesh::VPropHandleT< Point > original_positions_

OpenMesh::VPropHandleT
< NormalType > 		original_normals_

OpenMesh::VPropHandleT< Point > new_positions_

OpenMesh::VPropHandleT< bool > is_active_


Detailed Description

template<class Mesh>
class OpenMesh::Smoother::SmootherT< Mesh >

Base class for smoothing algorithms.

Definition at line 81 of file SmootherT.hh.

Member Enumeration Documentation

template<class Mesh>
enum OpenMesh::Smoother::SmootherT::Component
Enumerator
Tangential

Smooth tangential direction.

Normal

Smooth normal direction.

Tangential_and_Normal

Smooth tangential and normal direction.

Definition at line 92 of file SmootherT.hh.

Constructor & Destructor Documentation

template<class Mesh>
OpenMesh::Smoother::SmootherT< Mesh >::SmootherT ( Mesh &  _mesh)

constructor & destructor

Parameters
_meshReference a triangle or poly mesh

Definition at line 78 of file SmootherT.cc.

Member Function Documentation

template<class Mesh >
void OpenMesh::Smoother::SmootherT< Mesh >::disable_local_error_check ( )

Disable error control of the smoother.

This function disables the error control of the smoother.

Definition at line 295 of file SmootherT.cc.

template<class Mesh >
void OpenMesh::Smoother::SmootherT< Mesh >::initialize ( Component  _comp,
Continuity  _cont
)

Initialize smoother

Parameters
_compDetermine component to smooth
_contDetermine Continuity

Definition at line 127 of file SmootherT.cc.

template<class Mesh >
void OpenMesh::Smoother::SmootherT< Mesh >::set_absolute_local_error ( Scalar  _err)

Set local error as an absolute value.

Set the maximal error tolerance of the smoother to the given value.

Parameters
_errMaximal error

Definition at line 283 of file SmootherT.cc.

template<class Mesh >
void OpenMesh::Smoother::SmootherT< Mesh >::set_active_vertices ( )
private

Find active vertices. Resets tagged status !

This function recomputes the set of active vertices, which will be touched by the smoother. If nothing on the mesh is selected, all vertices which are not locked, feature or boundary will be marked as active and moved by the smoother. If vertices are selected, than only the selected ones, excluding the locked, feature and boundary vertices will be moved.

The function is called first when running the smoother.

Definition at line 157 of file SmootherT.cc.

template<class Mesh >
void OpenMesh::Smoother::SmootherT< Mesh >::set_relative_local_error ( Scalar  _err)

Set local error relative to bounding box.

This function sets a maximal error tolerance for the smoother as a fraction of the bounding box of the mesh. First the bounding box diagonal is computed. Then the error is set as the length of the diagonal multiplied with the given factor.

Parameters
_errFactor scaling the bounding box diagonal

Definition at line 253 of file SmootherT.cc.

template<class Mesh>
void OpenMesh::Smoother::SmootherT< Mesh >::skip_features ( bool  _state)
inline

enable or disable feature handling

This function can be used to control if features on the mesh should be preserved. If enabled, the smoother will keep features and does not modify them. Features can be set via OpenMesh status flags (request status and set primitives as features). Feature flag can be set for vertices edges and faces.

Parameters
_statetrue : If features are selected on the mesh, they will be left unmodified
false : Features will be ignored

Definition at line 172 of file SmootherT.hh.
