Interface for all plugins which want to Load or Save files and create Objects. More...

#include <OpenFlipper/BasePlugin/LoadSaveInterface.hh>

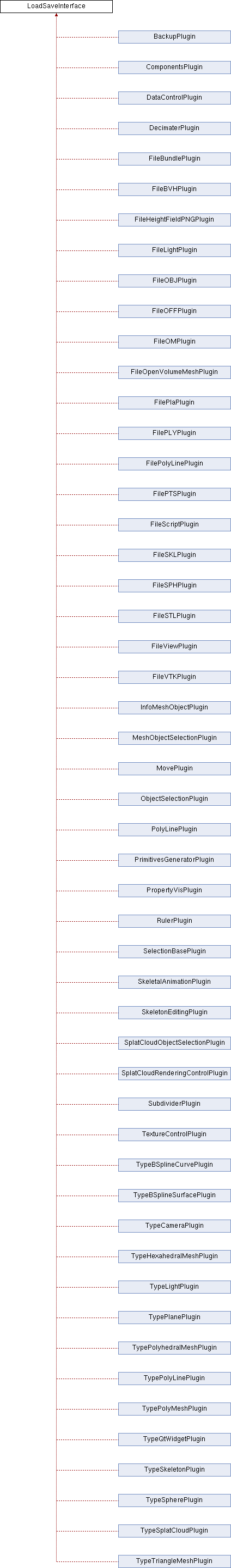

Inheritance diagram for LoadSaveInterface:

Signals
virtual void	save (int _id, QString _filename)
	Save object to a file. More...

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType. More...

Public Member Functions
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created. More...

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. . More...

virtual void	deleteAllObjects ()
	Delete all Objects. More...

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered. More...

Private Slots
virtual void	fileOpened (int _id)
	A file has been opened. More...

Private Member Functions
virtual void	addedEmptyObject (int _id)
	An empty object has been added. More...

virtual void	objectDeleted (int _id)
	An object was deleted. More...

Detailed Description

Interface for all plugins which want to Load or Save files and create Objects.

Detailed description
Using this interface you can instruct the core to open/save objects or to create new empty objects.

Definition at line 68 of file LoadSaveInterface.hh.

Member Function Documentation

virtual void LoadSaveInterface::addedEmptyObject ( int _id )

inlineprivatevirtual

An empty object has been added.

Slot is called if an empty object has been added by the core.
This slot will be executed on the main thread.

Parameters

_id	Id of the new object

Reimplemented in MeshObjectSelectionPlugin, and TypeLightPlugin.

Definition at line 148 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::addEmptyObject	(	DataType	_type,
		int &	_id
	)

inlinevirtual

Add an empty object of the given type
This signal can be called from any thread.

Parameters

_type	Type to be created
_id	Here the id of the loaded object is returned. id is -1 something went wrong

Definition at line 98 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::copyObject	(	int	_oldId,
		int &	_newId
	)

inlinevirtual

Create a copy of an existing object

Parameters

_oldId	id of the object to copy
_newId	id of the new object created

Definition at line 105 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::deleteAllObjects ( )

inlinevirtual

Delete all Objects.

Definition at line 125 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::deleteObject ( int _id )

inlinevirtual

Delete an object
This signal can be called from any thread.
.

Parameters

_id	Id of the object

Definition at line 120 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::emptyObjectAdded ( int _id )

inlinevirtual

DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created.

Deprecated! Objects are added by the Type Plugins and this is signal is in the TypeInterface now

Parameters

_id	Id of the added object

Definition at line 114 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::fileOpened ( int _id )

inlineprivatevirtualslot

A file has been opened.

This slot is called if a file has been opened by the core.
This slot will be executed in the main thread.

Parameters

_id	Id of the new object

Definition at line 140 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::getAllFileFilters ( QStringList & _filters )

inlinevirtual

Get all file filters that are registered.

Definition at line 130 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::load	(	QString	_filename,
		DataType	_type,
		int &	_id
	)

inlinevirtualsignal

Load object from file with a specific DataType.

Parameters

_filename	Filename of the File to load
_type	Type to be loaded
_id	Here the id of the loaded object is returned. id is -1 something went wrong

Definition at line 89 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::objectDeleted ( int _id )

inlineprivatevirtual

An object was deleted.

This function is called by the core if an object gets deleted. It is called immediately before the object is removed from the scenegraph. So if this function is invoked, the object still exists. All plugins get informed via this slot.\

After this function got called for all plugins, the object is removed from the scene with all nodes attached to it and all PerObjectData attached to it.
This slot will be executed on the main thread.

Parameters

_id	Id of the object that is deleted.

Reimplemented in TypeLightPlugin, and TypeQtWidgetPlugin.

Definition at line 163 of file LoadSaveInterface.hh.

virtual void LoadSaveInterface::save	(	int	_id,
		QString	_filename
	)

inlinevirtualsignal

Save object to a file.

Parameters

_id	Object to Save
_filename	Filename to save it to (Leave as "" to automatically determine filename)

Definition at line 81 of file LoadSaveInterface.hh.

The documentation for this class was generated from the following file:

OpenFlipper/BasePlugin/LoadSaveInterface.hh
