#include <OpenMesh/Mesh/Traits.hh>

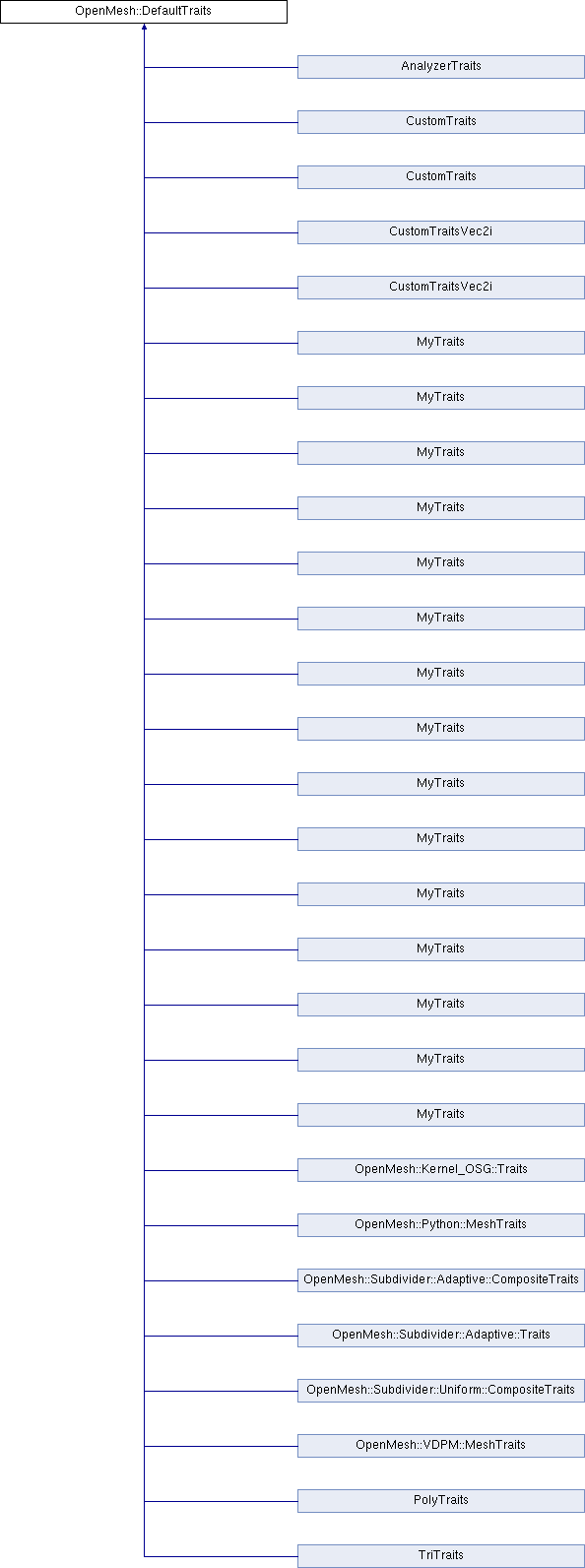

Inheritance diagram for OpenMesh::DefaultTraits:

Public Types
typedef Vec3f	Point
	The default coordinate type is OpenMesh::Vec3f.

typedef Vec3f	Normal
	The default normal type is OpenMesh::Vec3f.

typedef float	TexCoord1D
	The default 1D texture coordinate type is float.

typedef Vec2f	TexCoord2D
	The default 2D texture coordinate type is OpenMesh::Vec2f.

typedef Vec3f	TexCoord3D
	The default 3D texture coordinate type is OpenMesh::Vec3f.

typedef int	TextureIndex
	The default texture index type.

typedef Vec3uc	Color
	The default color type is OpenMesh::Vec3uc.

Public Member Functions
	VertexAttributes (0)

	HalfedgeAttributes (Attributes::PrevHalfedge)

	EdgeAttributes (0)

	FaceAttributes (0)

Detailed Description

Base class for all traits. All user traits should be derived from this class. You may enrich all basic items by additional properties or define one or more of the types Point, Normal, TexCoord, or Color.

See also: The Mesh docu section on Specifying your MyMesh.; Traits.hh for a list of macros for traits classes.

Definition at line 126 of file Traits.hh.

The documentation for this class was generated from the following file:

libs_required/OpenMesh/src/OpenMesh/Core/Mesh/Traits.hh
